Removal and installation

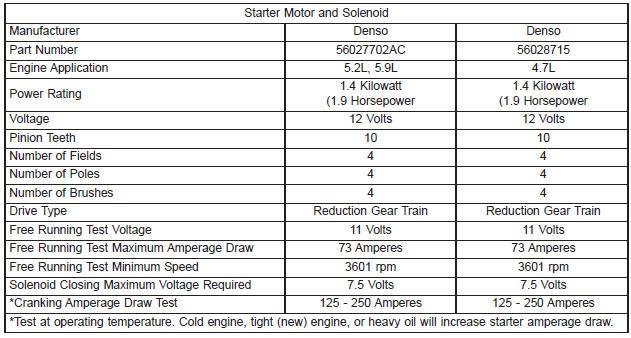

Starter motor

REMOVAL

ALL 5.2L AND 5.9L ENGINE

(1) Disconnect and isolate the battery negative cable.

(2) Raise and support the vehicle.

(3) Remove the nut and the lock washer that secures the lower mounting flange of the starter motor to the stud on the automatic transmission torque converter housing (Fig. 10).

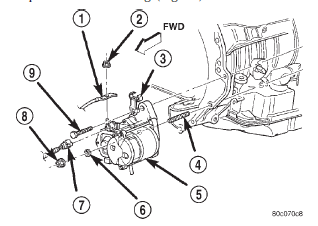

Fig. 10 Starter Motor Remove/Install - All 5.2L and 5.9L Engine Fig. 10 Starter Motor Remove/Install - All 5.2L and 5.9L Engine

1 - EYELET TERMINAL

2 - NUT

3 - BRACKET

4 - STUD

5 - STARTER MOTOR

6 - LOCK WASHER

7 - WIRE HARNESS CONNECTOR

8 - NUT

9 - SCREW AND WASHER

(4) While supporting the starter motor with one hand, use the other hand to remove the screw and washer that secures the upper mounting flange of the starter motor to the automatic transmission torque converter housing.

(5) Slide the automatic transmission cooler tube bracket forward on the tubes far enough for the starter motor mounting flange to be removed from the lower mounting stud.

(6) Lower the starter motor from the front of the automatic transmission torque converter housing far enough to access and remove the nut that secures the battery positive cable eyelet terminal to the starter solenoid B(+) terminal stud. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(7) Remove the battery positive cable eyelet terminal from the solenoid B(+) terminal stud. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(8) Disconnect the battery positive cable solenoid terminal wire harness connector from the connector receptacle on the starter solenoid. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(9) Remove the starter motor from the automatic transmission torque converter housing.

4.7L ENGINE

(1) Disconnect and isolate the battery negative cable.

(2) Raise and support the vehicle.

(3) Remove the screw and washer (rearward facing) that secures the lower mounting flange of the starter motor to the automatic transmission torque converter housing (Fig. 11).

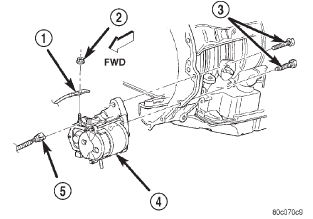

Fig. 11 Starter Motor Remove/Install - 4.7L Engine Fig. 11 Starter Motor Remove/Install - 4.7L Engine

1 - EYELET TERMINAL

2 - NUT

3 - SCREW AND WASHER (2)

4 - STARTER MOTOR

5 - WIRE HARNESS CONNECTOR

(4) While supporting the starter motor with one hand, use the other hand to remove the screw and washer (rearward facing) that secures the upper mounting flange of the starter motor to the automatic transmission torque converter housing.

(5) Lower the starter motor from the front of the automatic transmission torque converter housing far enough to access and remove the nut that secures the battery positive cable eyelet terminal to the starter solenoid B(+) terminal stud. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(6) Remove the battery positive cable eyelet terminal from the solenoid B(+) terminal stud. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(7) Disconnect the battery positive cable solenoid terminal wire harness connector from the connector receptacle on the starter solenoid. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(8) Remove the starter motor from the automatic transmission torque converter housing.

INSTALLATION

ALL 5.2L AND 5.9L ENGINE

(1) Position the starter motor to the automatic transmission torque converter housing.

(2) Reconnect the battery positive cable solenoid terminal wire harness connector to the connector receptacle on the starter solenoid. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(3) Install the battery positive cable eyelet terminal onto the solenoid B(+) terminal stud. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(4) Install and tighten the nut that secures the battery positive cable eyelet terminal to the starter solenoid B(+) terminal stud. Tighten the nut to 13.6 N*m (120 in. lbs.). Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(5) Position the hole in the starter motor lower mounting flange over the stud on the automatic transmission torque converter housing.

(6) Slide the automatic transmission cooler tube bracket rearward on the tubes and into position over the starter motor upper mounting flange.

(7) Loosely install the screw and washer unit that secures the starter motor upper mounting flange to the automatic transmission torque converter housing.

(8) Loosely install the lock washer and nut that secures the starter motor lower mounting flange to the stud on the automatic transmission torque converter housing.

(9) Tighten the screw and washer unit and the nut that secure the starter motor mounting flange to the automatic transmission torque converter housing.

Tighten the screw and the nut to 67.8 N*m (50 ft.

lbs.).

(10) Lower the vehicle.

(11) Reconnect the battery negative cable.

4.7L ENGINE

(1) Position the starter motor to the automatic transmission torque converter housing.

(2) Reconnect the battery positive cable solenoid terminal wire harness connector to the connector receptacle on the starter solenoid. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(3) Install the battery positive cable eyelet terminal onto the solenoid B(+) terminal stud. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(4) Install and tighten the nut that secures the battery positive cable eyelet terminal to the starter solenoid B(+) terminal stud. Tighten the nut to 13.6 N*m (120 in. lbs.). Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.

(5) Position the starter motor mounting flange on the automatic transmission torque converter housing and loosely install the two screw and washer units to secure it.

(6) Tighten the two screw and washer units that secure the starter motor mounting flange to the automatic transmission torque converter housing. Tighten the screws to 67.8 N*m (50 ft. lbs.).

(7) Lower the vehicle.

(8) Reconnect the battery negative cable.

Starter relay

REMOVAL

(1) Disconnect and isolate the battery negative cable.

(2) Remove the cover from the Power Distribution Center (PDC) (Fig. 12).

(3) See the fuse and relay layout label affixed to the underside of the PDC cover for starter relay identification and location.

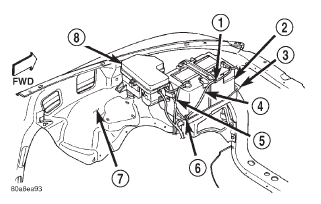

Fig. 12 Power Distribution Center Fig. 12 Power Distribution Center

1 - CLIP

2 - BATTERY

3 - TRAY

4 - NEGATIVE CABLE

5 - POSITIVE CABLE

6 - CLIP

7 - FENDER INNER SHIELD

8 - POWER DISTRIBUTION CENTER

(4) Remove the starter relay from the PDC.

INSTALLATION

(1) See the fuse and relay layout label affixed to the underside of the PDC cover for the proper starter relay location.

(2) Position the starter relay in the proper receptacle in the PDC.

(3) Align the starter relay terminals with the terminal cavities in the PDC receptacle.

(4) Push down firmly on the starter relay until the terminals are fully seated in the terminal cavities in the PDC receptacle.

(5) Install the cover onto the PDC.

(6) Reconnect the battery negative cable.
