60/40 Split Rear Seat
Fold-Flat
The second row seats can be folded flat to carry cargo.

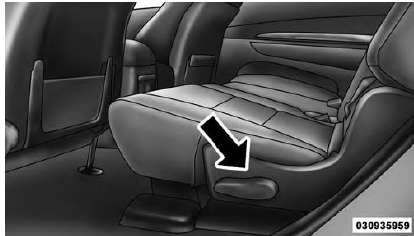

Pull upward on the release lever located on the outboard
side of the seat.

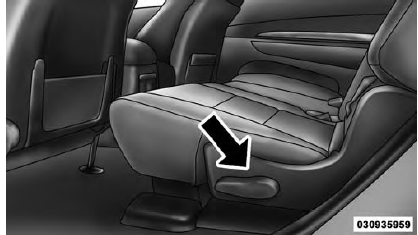

Release Lever

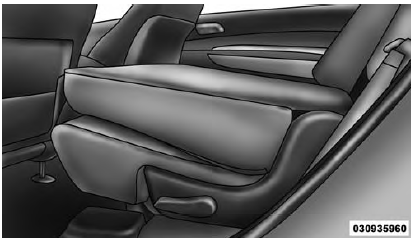

Fold-Flat Second Row Seat
NOTE: You may experience deformation in the seat
cushion from the seat belt buckles if the seats are left
folded for an extended period of time. This is normal and
by simply opening the seats to the open position, over
time the seat cushion will return to its normal shape.
Easy Access For Third Row
Either side of the rear seat can be tumbled forward to
allow passengers to easily access the third row seats.
- Pull upward on the release lever to release the seat.
Release Lever
- Tumble the seat forward using the pull strap located
behind the seatback.

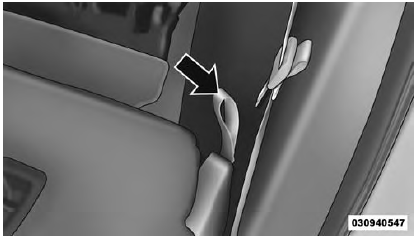

Tumble Strap

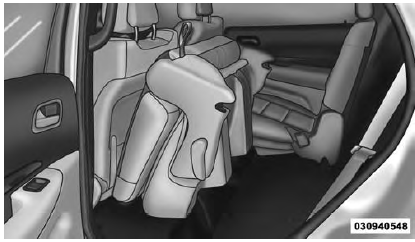

Tumbled Second Row
| WARNING!
Do not drive the vehicle with the second row seats in
the tumbled position. The second row seats are only intended to be
tumbled for entry and exit to the third
row seat. Failure to follow these instructions could
result in personal injury. |
To Raise Rear Seat
Fold the seat rearward and lock it into place.
| WARNING!
Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury. |
Rear Captain's Chairs - If Equipped
Fold-Flat
The second row seats can be folded flat to carry cargo.
Pull upward on the release lever located on the outboard
side of the seat.

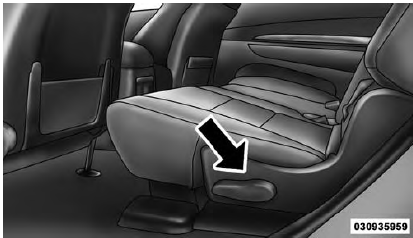

Release Lever

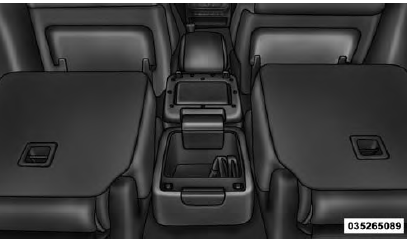

Fold-Flat Second Row Seats
NOTE: You may experience deformation in the seat
cushion from the seat belt buckles if the seats are left
folded for an extended period of time. This is normal and
by simply opening the seats to the open position, over
time the seat cushion will return to its normal shape.
Easy Access For Third Row
Either side of the rear seat can be tumbled forward to
allow passengers to easily access the third row seats.
- Pull upward on the release lever to release the seat.
Release Lever
- Tumble the seat forward using the pull strap located
behind the seatback.

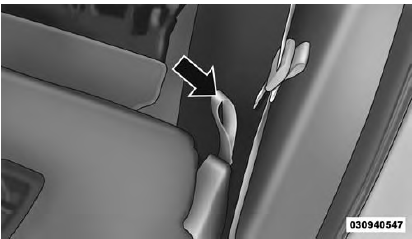

Tumble Strap
| WARNING!
Do not drive the vehicle with the second row seats in
the tumbled position. The second row seats are only
intended to be tumbled for entry and exit to the third
row seat. Failure to follow these instructions could
result in personal injury. |
- If your vehicle is equipped with a mini console there is
a stepping pad to allow passengers to easily access the
third row seats.

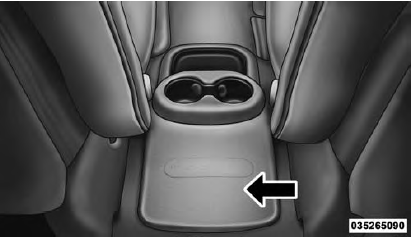

Mini Console Stepping Pad
To Raise Rear Seat
Fold the seat rearward and lock it into place
| WARNING!
Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury. |
