Blu-ray Disc Player

Play A Blu-ray Disc

The Blu-ray Disc player is located in the center console.

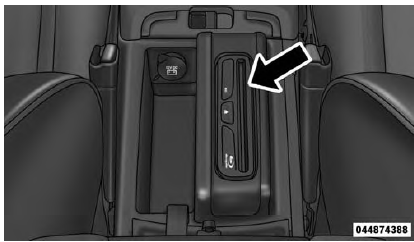

Blu-ray Disc Player Location

1. Insert a Blu-ray disc into the VES disc player with the label facing as indicated on the Blu-ray player. The radio automatically selects the appropriate mode after the disc is recognized and displays the menu screen, the language screen, or starts playing the first track.
2.  To watch a Blu-ray disc on Rear 1 for driver's side rear passengers, ensure the Remote Control and Headphone switch is on Rear 1.
3.  To watch a Blu-ray disc on Rear 2 for passenger side rear passengers, ensure the Remote Control and Headphone switch is on Rear 2.

NOTE:

•  To view a Blu-ray disc on the radio, press the "Media" button on the touchscreen, and then press the "Disc" button. Press the "Play" button, and then the "full screen" button.
•  Viewing a Blu-ray disc on the radio screen is not available in all states/provinces. The vehicle must be stopped, and the gear selector must be in the PARK position for vehicles with automatic transmission.

Using The Touchscreen Radio

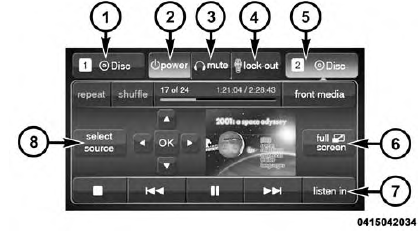

Rear Media Control Screen

1. RSE Channel 1 Mode Indicates the current source for Screen 1/Channel 1. This button will be highlighted when it is the active Screen/ Channel being controlled by the front user. If this button is not highlighted, select button to access controls for Screen 1/Channel 1 source.
2.  RSE Power Press to turn RSE On/Off.
3.  RSE Mute Mute rear headphones for the current ignition cycle.Pressing mute again will unmute rear headphones.
4.  RSE Remote Control Lock Out Press to enable/disable Remote Control functions.
5.  RSE Channel 2 Mode Indicates the current source for Screen 2/Channel 2. This button will be highlighted when it is the active Screen/ Channel being controlled by the front user. If this button is not highlighted, select button to access controls for Screen 2/Channel 2 source.
6. Radio Full Screen Mode Select this button to change to Full Screen Mode.
7.  Cabin Audio Mode Select this button to change the cabin audio to the rear entertainment source currently shown on the rear media control screen.
8.  RSE Mode Select this button to change source for the active (highlighted) rear Screen/Channel on the rear media control screen.

•  Press the Media button on the touchscreen, and then press the Rear Media button on the touchscreen.
•  Press the OK button on the touchscreen to begin playing the Blu-ray Disc on the touchscreen radio.

Using The Remote Control

• Select an audio channel (Rear 1 for driver's side rear screen and Rear 2 for passenger's side rear screen), and then press the source key, and using the up and down arrows, highlight disc from the menu and press the OK button.
•  Press the popup/menu key to navigate the disc menu and options.
