Driver information display (DID)

The Driver Information Display (DID) features a driverinteractive display that is located in the instrument cluster.

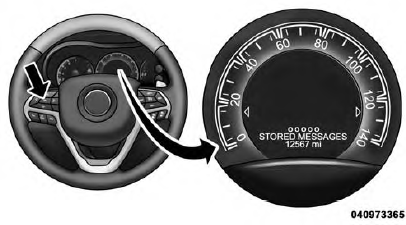

DID Cluster Display

The DID Menu items consists of the following:

•  Speedometer
• Vehicle Info
•  Driver Assist - If Equipped
•  Fuel Economy
•  Trip
•  Stop/Start - If Equipped
•  Audio
•  Navigation
•  Stored Messages

The system allows the driver to select information by pushing the following buttons mounted on the steering wheel:

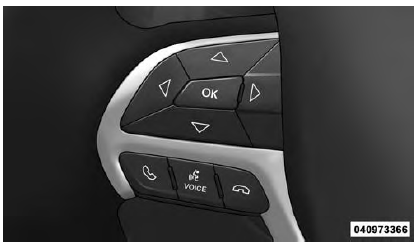

DID Steering Wheel Buttons

• UP Arrow Button

Push and release the UP arrow button to scroll upward through the main menu.

•  DOWN Arrow Button

Push and release the DOWN arrow button to scroll downward through the main menu.

•  RIGHT Arrow Button

Push and release the RIGHT arrow button to access the information screens or submenu screens of a main menu item.

•  LEFT Arrow Button

Push the LEFT arrow button to return to the main menu from an info screen or submenu item.

• OK Button

Push the OK button to access/select the information screens or submenu screens of a main menu item. Push and hold the OK button for two seconds to reset displayed/selected features that can be reset.

• DID Displays. Engine Oil Life Reset
• DID Messages. DID Selectable Menu Items
• Screen Setup Driver Selectable Items. Battery Saver On/Battery Saver Mode Message - Electrical Load Reduction Actions - If Equipped
