Roof luggage rack - if equipped

The crossbars and side rails are designed to carry weight on vehicles equipped with a luggage rack. The load must not exceed 150 lbs (68 kg), and should be uniformly distributed over the luggage rack crossbars.

The crossbars on your vehicle are delivered stowed within the roof rack side rails. Crossbars should always be used whenever cargo is placed on the roof rack. Check the straps frequently to be sure that the load remains securely attached.

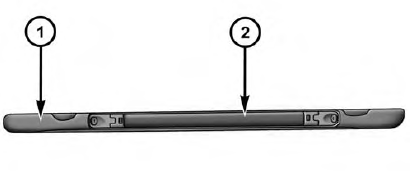

Roof Rack Roof Rack

1 - Side Rail
2 - Crossbar

The roof rack does not increase the total load carrying capacity of the vehicle. Be sure the total load of cargo inside the vehicle plus that on the external rack does not exceed the maximum vehicle load capacity.

Deploying the Crossbars

Starting with one crossbar, completely loosen the thumb screws at both ends of the crossbar.

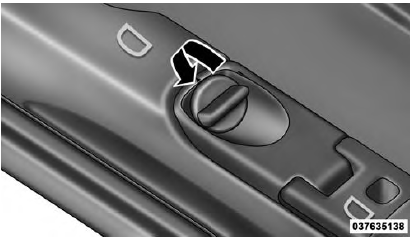

Thumb Screw Thumb Screw

NOTE: The thumb screws cannot be fully removed.

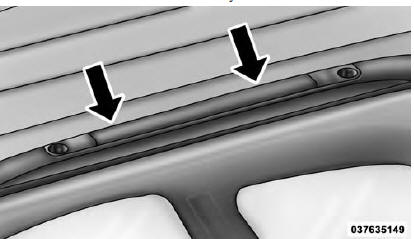

Remove the crossbar from the stowed position by sliding the crossbar towards the center of the roof. Repeat with crossbar on the opposite side.

Removing Crossbars Removing Crossbars

CAUTION! Be careful when handling the crossbars to prevent damage to the vehicle.

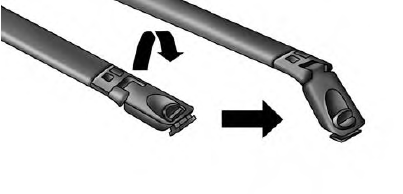

Starting with one crossbar, bend down the pivot supports at each end.

Bending Pivot Bending Pivot

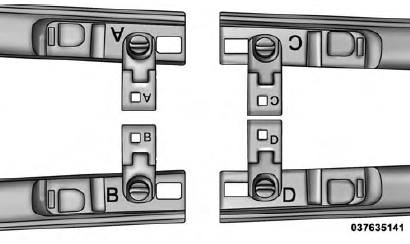

Position the crossbars across the roof making sure the letters on the crossbars align with the matching letters on the side rail.

Positioning Crossbars Positioning Crossbars

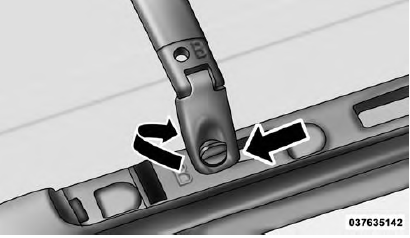

Slide the cross bar into to the deploy position by moving it towards the matching letter in the side rail. Be sure the crossbar is fully deployed with the crossbar pushed as far into the slot as possible. Once the crossbar is in place, tighten both thumb screws completely.

Installing Crossbars Installing Crossbars

Deploy and tighten the second crossbar to complete the deployment of the crossbars.

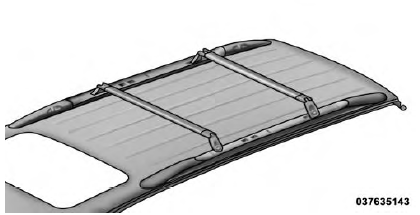

Deployed Crossbars Deployed Crossbars

Stowing The Crossbars

Starting with one crossbar, completely loosen the thumb screws at both ends. Slide the crossbar away from the matching letter to remove it from the deployed position.

Repeat with the other crossbar.

CAUTION! Be careful when handling the crossbars to prevent damage to the vehicle.

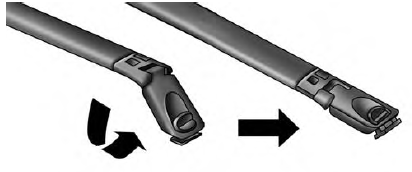

Starting with the one crossbar, bend up the pivot supports at each end.

Crossbar Pivot Crossbar Pivot

Then, position the crossbar along the correct side rail.

Make sure the letters on the crossbar align with the matching letters on the side rail.

Stowing Crossbars Stowing Crossbars

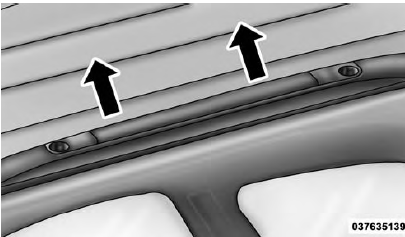

Slide the crossbar outward, away from the center of the roof. The crossbar will nest fully within the side rail.

Crossbar To Side Rail Crossbar To Side Rail

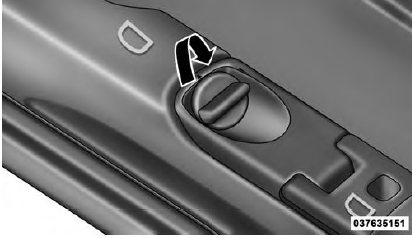

Once the driver's side crossbar is in place, tighten the thumb screws completely.

Tightening Crossbar Tightening Crossbar

Repeat the procedure to stow the second crossbar on the opposite side.

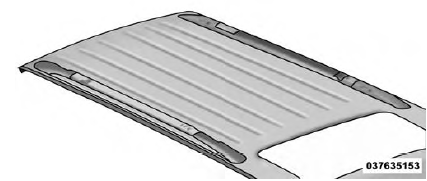

Stowed Crossbars Stowed Crossbars

NOTE:

  •  To help control wind noise, stow the crossbars in the side rails when they are not in use.
  •  If any metallic object is placed over the satellite radio antenna (if equipped), you may experience interruption of satellite radio reception.
WARNING! Cargo must be securely tied before driving your vehicle. Improperly secured loads can fly off the vehicle, particularly at high speeds, resulting in personal injury or property damage. Follow the roof rack cautions when carrying cargo on your roof rack. the roof. If it is necessary to place the load on the roof, place a blanket or other protective layer between the load and the roof surface.
  •  To avoid damage to the roof rack and vehicle, do not exceed the maximum roof rack load capacity of 150 lb (68 kg). Always distribute heavy loads as evenly as possible and secure the load appropriately.
  •  Load should always be secured to cross bars first, with tie down loops used as additional securing points if needed. Tie loops are intended as supplementary tie down points only. Do not use ratcheting mechanisms with the tie loops. Check the straps and thumb wheels frequently to be sure that the load remains securely attached.
  • Long loads that extend over the windshield, such as wood panels or surfboards, or loads with large frontal area should be secured to both the front and rear of the vehicle.
  •  Travel at reduced speeds and turn corners carefully when carrying large or heavy loads on the roof rack. Wind forces, due to natural causes or nearby truck traffic, can add sudden upward lift to a load. This is especially true on large flat loads and may result in damage to the cargo or your vehicle.



CAUTION!
  •  To prevent damage to the roof of your vehicle, DO NOT carry any loads on the roof rack without the crossbars deployed. The load should be secured and placed on top of the crossbars, not directly on
