2Nd row center seat back cover. 3Rd row seat cushion cover

2Nd row center seat back cover

REMOVAL

(1) Remove center seat back.

(2) Disengage J-straps on bottom.

(3) Remove hook and loop fasteners on left and right side.

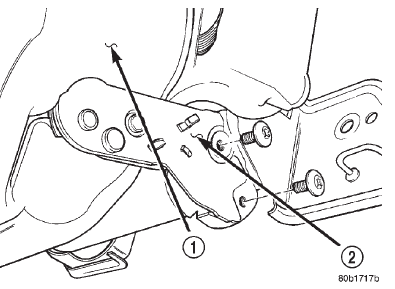

Fig. 14 2nd Row Center Seat Back

1 - 2ND ROW CENTER SEAT BACK

2 - HINGE

(4) Remove the cup holder.

(5) Roll cover off seat back.

INSTALLATION

(1) Position cover on seat back.

(2) Engage J-straps.

(3) Install center seat back.

(4) Engage hook and loop fasteners.

(5) Install the cup holder.

3Rd row seat cushion cover

NOTE: The cushion cover is bonded to the seat foam cushion.

REMOVAL

(1) Lift and rotate seat cushion forward.

(2) Disengage J-straps on underside of seat.

(3) Disengage J-straps on each side of seat.

(4) Separate cover/cushion from seat frame.

INSTALLATION

(1) Position cover/cushion on seat frame.

(2) Engage J-straps on each side of seat.

(3) Engage J-straps on underside of seat.

(4) Return seat to seating position.
