Bucket seat. 2Nd row seat

Bucket seat

REMOVAL

If vehicle is equipped with center seat/console, remove seats and console as one assembly.

(1) If equipped, remove side shield and disengage power seat switch connector.

(2) Move seat to full forward position.

(3) Remove rear screws attaching trim cover to seat track (Fig. 94).

(4) Remove rear bolts attaching rear seat track to floor pan.

(5) Move seat to full rearward position.

(6) Remove front screws attaching trim cover to seat track (Fig. 94).

(7) Remove front bolts attaching front seat track to floor pan.

NOTE: Do not actuate recliner or track adjuster once bolts are removed.

(8) Tilt setback forward and lift seat out through door.

INSTALLATION

(1) Position seat in vehicle.

(2) Install bolts attaching front seat track to floor pan. Tighten bolts in sequence: (a) Driver's seat: (I) Front outboard (II) Front inboard (b) Passenger's seat:

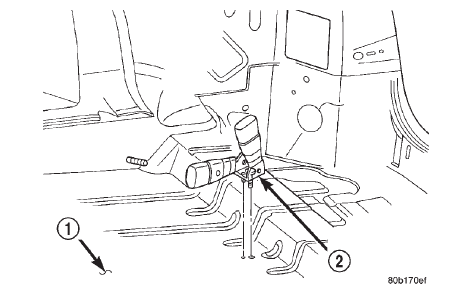

Fig. 93 3rd Row Seat Belt Buckle

1 - 3RD ROW SEAT BELT BUCKLE

2 - FLOOR PAN

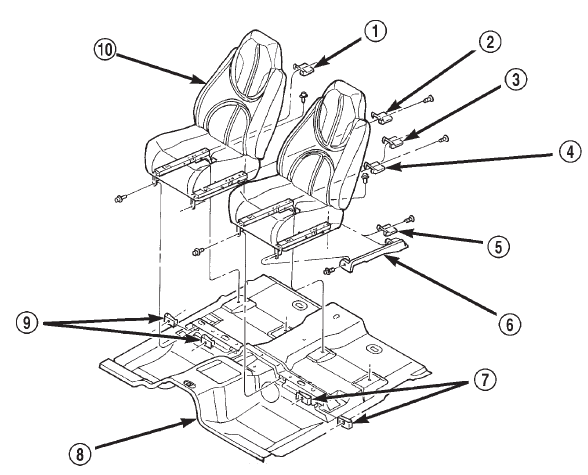

Fig. 94 Bucket Seat

1 - COVER

2 - COVER

3 - COVER

4 - COVER (POWER SEAT)

5 - COVER

6 - COVER (POWER SEAT)

7 - U-NUT

8 - FLOOR PAN

9 - U-NUT

10 - BUCKET SEAT

(I) Front inboard

(II) Front outboard

(c) Bucket seat with center seat (40/20/40)

(I) Driver's front outboard

(II) Passenger's front inboard

(III) Driver's front inboard

(IV) Passenger's front outboard

Tighten bolts attaching front seat track to floor pan to 28 N*m (20 ft. lbs.) torque.

(4) Install front screws attaching trim cover to seat track.

(5) Move seat to full forward position.

(6) Install bolts attaching rear inboard seat track to floor pan. Tighten to 40 N*m (30 ft. lbs.) torque.

(7) Install bolts attaching rear outboard seat track to floor pan. Tighten to 28 N*m (20 ft. lbs.) torque.

(8) Install rear screws attaching trim cover to seat track.

(9) If equipped, engage power seat switch connector and install side shield.

2Nd row seat

The 2nd row seat is removed as a complete assembly.

REMOVAL

(1) Move seat to the forward tumble position.

(2) Remove outboard bolts attaching seat to the floor pan (Fig. 95).

(3) Remove inboard bolts attaching seat belt buckle anchors and seat to floor pan (Fig. 96).

(4) Remove seat from the vehicle.

INSTALLATION

(1) Position seat in the vehicle.

(2) Install inboard bolts attaching seat belt buckle anchors and seat to floor pan (Fig. 96). Tighten bolts to 95 N*m (70 ft. lbs.) torque.

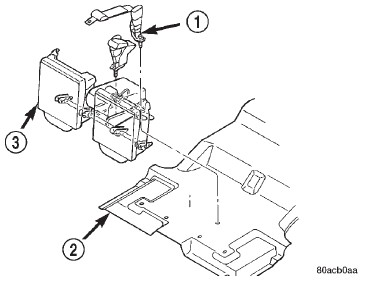

Fig. 96 2nd Row Seat Belt Anchors

1 - BUCKLE ANCHOR

2 - FLOOR PAN

3 - REAR SEAT (2ND SEAT)

(3) Install outboard bolts attaching seat to the floor pan (Fig. 95). Tighten bolts to 27 N*m (20 ft.

lbs.) torque.

(4) Move and latch seat in the seating position.
