Bucket seat track. Bucket seat back cover/cushion

Bucket seat track

REMOVAL

(1) Remove seat.

(2) Adjust the seat track to gain access to the torx bolts attaching the seat track to the cushion frame.

(3) Remove the torx bolts.

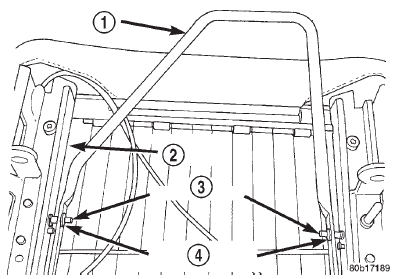

Fig. 1 Towel Bar

1 - TOWEL BAR

2 - CUSHION FRAME

3 - PIVOT STUD

4 - UNTHREADED STUD RETAINERS

(4) Remove the unthreaded stud retainers from the towel bar.

(5) Separate the seat track from the frame.

INSTALLATION

(1) Position the seat track on the frame.

(2) Install the unthreaded stud retainers on the towel bar.

(3) Install the torx bolts attaching the seat track to the cushion frame. Tighten the bolts in sequence (Fig. 2) to 24 N*m (17 ft. lbs.) torque.

(4) Install seat.

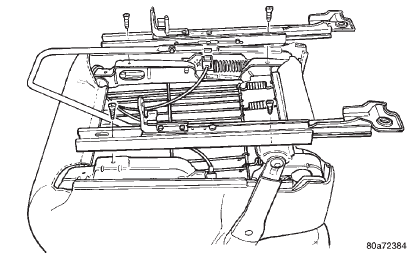

Fig. 2 Bucket Seat Track

Bucket seat back

The bucket seat back frame, seat cushion frame and recliner mechanism is serviced as a complete assembly. Refer to the Bucket Seat Cushion/Cover and Bucket Seat Back Pad/Cover for service procedures.

Bucket seat back cover/cushion

NOTE: CLOTH TRIM IS BONDED TO THE CUSHION FOAM.

REMOVAL

(1) Position seat in full forward position.

(2) Disengage J-strap at base of seat back.

(3) Using a trim stick, carefully pry off lumbar handle (driver's side only).

(4) Disengage wire hanger securing back pad to frame.

(5) Separate cover/cushion from seat back frame.

INSTALLATION

(1) Position cover/cushion on seat back frame.

(2) Engage wire hanger.

(3) Engage J-straps at base of seat back.

(4) Position lumbar handle on lumbar adjuster and press into place.

(5) Return seat to normal position.
