C-pillar seal. Rear door secondary seal
C-pillar seal
REMOVAL
The seal is attached to the door with adhesive tape.
(1) Peel the seal from the door (Fig. 59).

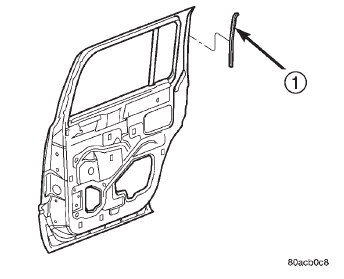

Fig. 59 B-Pillar Seal
1 - C-PILLAR SEAL
INSTALLATION
(1) Clean the contact area with Mopar Super Kleen or equivalent.
(2) Remove the carrier for the seal (3) Align the seal on the door and press into place.
Rear door secondary seal
REMOVAL
(1) Separate the secondary seal from the inner door panel

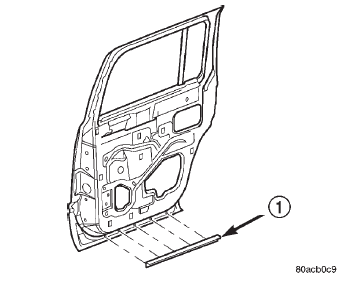

Fig. 60 Rear Door Secondary Seal
1 - REAR DOOR SILL SECONDARY SEAL
INSTALLATION
(1) Thoroughly clean the area of old adhesive. Use Mopar Super Kleen or equivalent.
(2) Position the secondary seal on the inner door panel.
