Diagnosis and testing
For circuit descriptions and diagrams, refer to
8W-48 - Rear Window Defogger in Group 8W - Wiring
Diagrams. The operation of the electrically
heated rear window defogger system can be confirmed
in one of the following manners:
1. Turn the ignition switch to the On position.
While monitoring the instrument panel voltmeter, set
the defogger switch in the On position. When the
defogger switch is turned On, a distinct voltmeter
needle deflection should be noted.
2. Turn the ignition switch to the On position. Set
the defogger switch in the On position. The rear window
defogger operation can be checked by feeling the
rear window or outside rear view mirror glass. A distinct
difference in temperature between the grid lines
and the adjacent clear glass or the mirror glass can
be detected within three to four minutes of operation.
3. Using a 12-volt DC voltmeter, contact the rear
glass heating grid terminal A (right side) with the
negative lead, and terminal B (left side) with the positive
lead (Fig. 1). The voltmeter should read battery
voltage.
The above checks will confirm system operation.
Illumination of the defogger switch indicator lamp
means that there is electrical current available at the
output of the rear window defogger logic and timer
circuitry, but does not confirm that the electrical current
is reaching the rear glass heating grid lines.

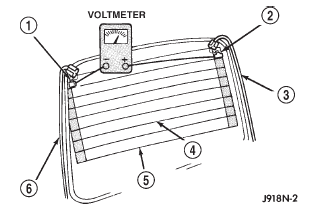

Fig. 1 Rear Window Glass Grid Test 1 - TERMINAL "A" 2 - TERMINAL "B" 3 - FEED WIRE 4 - MID-POINT "C" (TYPICAL) 5 - HEATED REAR WINDOW DEFOGGER GRID 6 - GROUND WIRE If the defogger system does not operate, the problem
should be isolated in the following manner:
(1) Confirm that the ignition switch is in the On
position.
(2) Ensure that the rear glass heating grid feed
and ground wires are connected to the glass. Confirm
that the ground wire has continuity to ground.
(3) Check the fuses in the Power Distribution Center
(PDC) and in the junction block. The fuses must
be tight in their receptacles and all electrical connections
must be secure.
When the above steps have been completed and the
rear glass heating grid is still inoperative, one or
more of the following is faulty: If setting the defogger switch to the On position
produces a severe voltmeter deflection, check for a
short circuit between the rear window switch pod
defogger relay output and the rear glass heating grid. For circuit descriptions and diagrams, refer to
8W-48 - Rear Window Defogger in Group 8W - Wiring
Diagrams. To detect breaks in the grid lines, the
following procedure is required:
(1) Turn the ignition switch to the On position. Set
the defogger switch in the On position. The indicator
lamp should light. If OK, go to Step 2. If not OK, see
Defogger Switch in the Diagnosis and Testing section
of this group. (2) Using a 12-volt DC voltmeter, contact the vertical
bus bar on the right side of the vehicle with the
negative lead. With the positive lead, contact the vertical
bus bar on the left side of the vehicle. The voltmeter
should read battery voltage. If OK, go to Step
3. If not OK, repair the open circuit to the defogger
relay as required.
(3) With the negative lead of the voltmeter, contact
a good body ground point. The voltage reading should
not change. If OK, go to Step 4. If not OK, repair the
circuit to ground as required.
(4) Connect the negative lead of the voltmeter to
the right side bus bar and touch each grid line at
midpoint C with the positive lead. A reading of
approximately six volts indicates a line is good. A
reading of zero volts indicates a break in the grid
line between midpoint C and the left side bus bar. A
reading of ten to fourteen volts indicates a break
between midpoint C and the right side bus bar. Move
the positive lead on the grid line towards the break
and the voltage reading will change as soon as the
break is crossed. For circuit descriptions and diagrams, refer to
8W-48 - Rear Window Defogger in Group 8W - Wiring
Diagrams. WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS,
REFER TO GROUP 8M - PASSIVE
RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY
STEERING WHEEL, STEERING COLUMN, OR
INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS
COULD RESULT IN ACCIDENTAL AIRBAG
DEPLOYMENT AND POSSIBLE PERSONAL
INJURY. (1) Disconnect and isolate the battery negative
cable. Remove the lower bezel from the instrument
panel and unplug the rear window switch pod wire
harness connector.
(2) Check for continuity between the ground circuit
cavity of the rear window switch pod wire harness
connector and a good ground. There should be
continuity. If OK, go to Step 3. If not OK, repair the
open circuit as required.
(3) Connect the battery negative cable. Check for
battery voltage at the fused B(+) circuit cavity of the
rear window switch pod wire harness connector. If
OK, go to Step 4. If not OK, repair the circuit to the
Power Distribution Center (PDC) fuse as required.
(4) Turn the ignition switch to the On position.
Check for battery voltage at the fused ignition switch
output (run) circuit cavity of the rear window switch
pod wire harness connector. If OK, go to Step 5. If not OK, repair the circuit
to the junction block fuse
as required.
(5) Turn the ignition switch to the Off position.
Disconnect and isolate the battery negative cable.
Plug the wire harness connector into the rear window
switch pod. Connect the battery negative cable.
Turn the ignition switch to the On position. Back
probe the rear window defogger relay output circuit
cavity of the rear window switch pod wire harness
connector. Depress and release the rear window
defogger switch. There should be battery voltage.
Depress and release the rear window defogger switch
again. There should be zero volts. If OK, go to Step 6.
If not OK, replace the faulty rear window switch pod.
(6) Depress and release the rear window defogger
switch. The rear window defogger indicator lamp
should light. If the indicator lamp does not light,
replace the bulb with a known good unit and test
again. If the lamp is still inoperative, replace the
faulty rear window switch pod.Defogger system
