Diagnosis and testing

Vehicle theft security system

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO GROUP 8M - PASSIVE RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

The Vehicle Theft Security System (VTSS) and the Chrysler Collision Detection (CCD) data bus network should be diagnosed using a DRB scan tool and the proper Diagnostic Procedures manual. The DRB will provide confirmation that the data bus is functional, that the high-line Central Timer Module (CTM) is receiving and sending the proper messages on the data bus, that the CTM is receiving the proper hardwired inputs and sending the proper hard-wired outputs, and that the Powertrain Control Module (PCM) is receiving the data bus messages from the CTM.

Refer to the Vehicle Theft Security System menu item on the DRB scan tool for the procedures. Refer to 8W-39 - Vehicle Theft Security System in Group 8W - Wiring Diagrams for complete circuit descriptions and diagrams.

Door lock cylinder switch

Refer to Vehicle Theft Security System in the index of this service manual for the location of complete door lock cylinder switch wiring diagrams.

(1) Disconnect the door lock cylinder switch wire harness connector from the door wire harness connector.

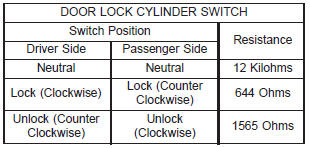

(2) Using an ohmmeter, perform the switch resistance checks between the two cavities of the door lock cylinder switch wire harness connector. Actuate the switch by rotating the key in the door lock cylinder to test for the proper resistance values in each of the three switch positions, as shown in the Door Lock Cylinder Switch chart.

(3) If a door lock cylinder switch fails any of the resistance tests, replace the faulty switch as required.

Liftgate lock cylinder switch

Refer to Vehicle Theft Security System in the index of this service manual for the location of complete liftgate lock cylinder switch wiring diagrams.

(1) Disconnect the likftgate lock cylinder switch wire harness connector from the liftgate wire harness connector.

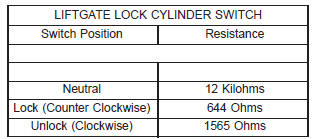

(2) Using an ohmmeter, perform the switch resistance checks between the two cavities of the liftgate lock cylinder switch wire harness connector. Actuate the switch by rotating the key in the liftgate lock cylinder to test for the proper resistance values in each of the three switch positions, as shown in the Liftgate Lock Cylinder Switch chart.

(3) If a liftgate lock cylinder switch fails any of the resistance tests, replace the faulty switch as required.

Relays

The headlamp (or security) and horn relays are located in the Power Distribution Center (PDC) in the engine compartment. Each of these relays can be tested as described in the following procedure, however the circuits they are used in do vary. To test the relay circuits, refer to the circuit descriptions and diagrams in 8W-39 - Vehicle Theft Security System in Group 8W - Wiring Diagrams.

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO GROUP 8M - PASSIVE RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

Remove the relay (Fig. 1) from the PDC as described in this group to perform the following tests: (1) A relay in the de-energized position should have continuity between terminals 87A and 30, and no continuity between terminals 87 and 30. If OK, go to Step 2. If not OK, replace the faulty relay.

(2) Resistance between terminals 85 and 86 (electromagnet) should be 75 6 5 ohms. If OK, go to Step 3. If not OK, replace the faulty relay.

(3) Connect a battery to terminals 85 and 86.

There should now be continuity between terminals 30 and 87, and no continuity between terminals 87A and 30. If OK, test the relay circuits. If not OK, replace the faulty relay.

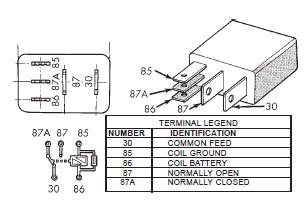

Fig. 1 Relay Terminals
