Differential side bearings. Ring gear

Differential side bearings

REMOVAL

(1) Remove differential from axle housing.

(2) Remove the bearings from the differential case with Puller/Press C-293-PA, C-293-48 Blocks, and Plug C-293-3 (Fig. 14).

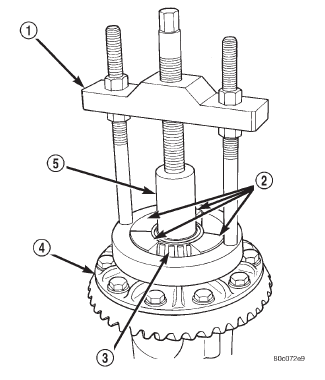

Fig. 14 Differential Bearing Removal

1 - SPECIAL TOOL C-293-PA

1 - SPECIAL TOOL C-293-48

3 - BEARING

4 - DIFFERENTIAL

5 - SPECIAL TOOL C-293-3

INSTALLATION

(1) Using Installer 8236, with handle C-4171, install the differential side bearings (Fig. 15).

(2) Install differential in axle housing.

Ring gear

NOTE: The ring gear and pinion are service in a matched set. Do not replace the ring gear without replacing the pinion.

REMOVAL

(1) Remove differential from axle housing.

(2) Place differential case in a suitable vise with soft metal jaw protectors. (Fig. 16) (3) Remove bolts holding ring gear to differential case.

Fig. 15 Install Differential Side Bearings

1 - HANDLE C-4171

2 - DIFFERENTIAL

3 - BEARING

4 - TOOL 8236

(4) Using a soft hammer, drive ring gear from differential case (Fig. 16).

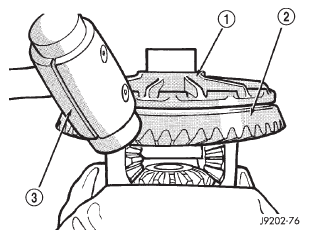

Fig. 16 Ring Gear Removal

1 - CASE

2 - RING GEAR

3 - RAWHIDE HAMMER

INSTALLATION

CAUTION: Do not reuse the bolts that held the ring gear to the differential case. The bolts can fracture causing extensive damage.

(1) Invert the differential case and start two ring gear bolts. This will provide case-to-ring gear bolt hole alignment.

(2) Invert the differential case in the vise.

(3) Install new ring gear bolts and alternately tighten to 95-122 N*m (70-90 ft. lbs.) torque (Fig.

17).

(4) Install differential in axle housing and verify gear mesh and contact pattern.

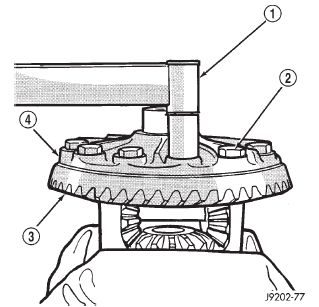

Fig. 17 Ring Gear Bolt Installation

1 - TORQUE WRENCH

2 - RING GEAR BOLT

3 - RING GEAR

4 - CASE
