Disc brake rotor. Rear brake shoes
REMOVAL 1) Raise and support vehicle.
(2) Remove wheel and tire assembly.
(3) Remove brake caliper.
(4) Remove retainers on wheel studs and remove
rotor. INSTALLATION (1) Install rotor hub and install retainers.
(2) Install brake caliper.
(3) Install wheel and tire assembly.
(4) Remove support and lower vehicle.
(5) Depress brake pedal several time to seat brake
shoes. REMOVAL (1) Raise and support vehicle.
(2) Remove wheel and tire assembly.
(3) Remove clip nuts securing brake drum to wheel
studs.
(4) Remove drum. If drum is difficult to remove,
remove rear plug from access hole in support plate.
Back-off self adjusting by inserting a thin screwdriver
into access hole and push lever away from
adjuster screw star wheel. Then insert an adjuster
tool into brake adjusting hole rotate adjuster star
wheel to retract brake shoes.
(5) Vacuum brake components to remove brake lining
dust.
(6) Remove shoe return springs with brake spring
plier tool (Fig. 30).
(7) Remove adjuster cable. Slide cable eye off
anchor pin. Then unhook and remove cable from
adjuster lever.
(8) Remove cable guide from secondary shoe and
anchor plate from anchor pin.
(9) Remove adjuster lever. Disengage lever from
spring by sliding lever forward to clear pivot and
work lever out from under spring.
(10) Remove adjuster lever spring from pivot.
(11) Disengage and remove shoe spring from brake
shoes.
(12) Disengage and remove adjuster screw assembly
from brake shoes.
(13) Remove brake shoe retainers, springs (Fig.
31).

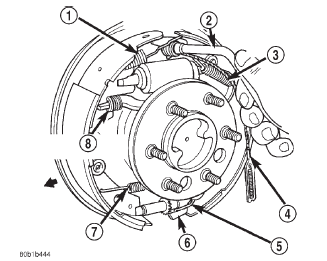

Fig. 30 Shoe Return Springs 1 - SHOE RETURN SPRING 2 - SPECIAL TOOL (REMOVING AND INSTALLING) 3 - SHOE RETURN SPRING 4 - ADJUSTER CABLE 5 - LEVER SPRING 6 - ADJUSTER LEVER 7 - SHOE TO SHOE SPRING 8 - ANTI-RATTLE SPRING

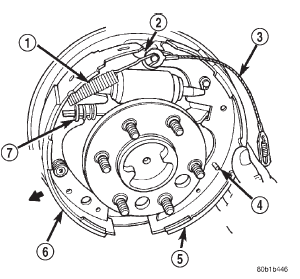

Fig. 31 Shoe Retainers, Springs and Pins 1 - STRUT AND SPRING 2 - SPRING 3 - PIN 4 - RETAINER 5 - PRIMARY SHOE AND LINING 6 - TOOL C-4070 7 - SECONDARY SHOE AND LINING (14) Remove secondary brake shoe from support
plate.
(15) Remove strut and spring (Fig. 31).
(16) Remove parking brake lever retaining clip
from the secondary shoe and remove the lever.
(17) Remove primary shoe from support plate.
(18) Disengage parking brake lever from parking
brake cable. INSTALLATION (1) Clean and inspect individual brake components,
refer to Cleaning and Inspection Section.
(2) Lubricate anchor pin and brake shoe contact
pads on support plate with high temperature grease
or Lubriplate (Fig. 32).

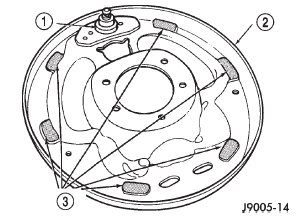

Fig. 32 Shoe Contact Surfaces 1 - ANCHOR PIN 2 - SUPPORT PLATE 3 - SHOE CONTACT SURFACES (3) Lubricate adjuster screw socket, nut, button
and screw thread surfaces with grease or Lubriplate.
(4) Install the parking brake cable to the parking
brake lever.
(5) Install parking brake lever to the secondary
shoe and install retaining clip.
(6) Install primary shoe on support plate. Secure
shoe with new spring retainers and pin.
(7) Install spring on parking brake strut and
engage strut in primary.
(8) Install secondary shoe on support plate (Fig.
33). Insert strut in shoe and guide shoe onto anchor
pin. Temporarily secure shoe with retaining pin.
(9) Install anchor plate and adjuster cable eyelet
on support plate anchor pin.
(10) Install cable guide in secondary shoe and position
cable in guide.
(11) Assemble adjuster screw (Fig. 34). Then
install and adjuster screw between the brake shoes.

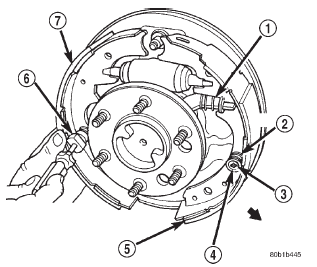

Fig. 33 Brake Shoe Installation 1 - SHOE RETURN SPRING 2 - ANCHOR PLATE 3 - ADJUSTER CABLE 4 - SHOE RETAINING PIN 5 - SECONDARY SHOE AND LINING 6 - PRIMARY SHOE AND LINING 7 - STRUT AND SPRING CAUTION: Be sure the adjuster screws are installed
on the correct brake unit. The adjuster screws are
marked L (left) and R (right) for identification.

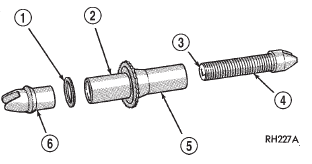

Fig. 34 Adjuster Screw 1 - WASHER 2 - SOCKET 3 - STAMPED LETTER L-LEFT BRAKE R-RIGHT BRAKE 4 - SCREW THREADS 5 - NUT 6 - BUTTON (12) Install adjuster lever and spring and connect
adjuster cable to lever.
(13) Install secondary shoe retainers and spring. (14) Install shoe spring. Connect spring to secondary
shoe first. Then to primary shoe.
(15) Verify adjuster operation. Pull adjuster cable
upward, cable should lift lever and rotate star wheel. Be
sure adjuster lever properly engages star wheel teeth.
(16) Adjust brake shoes to drum with brake gauge.
