Emission system. Malfunction indicator lamp (mil)
OPERATION The Powertrain Control Module (PCM) monitors
many different circuits in the fuel injection, ignition,
emission and engine systems. If the PCM senses a
problem with a monitored circuit often enough to
indicate an actual problem, it stores a Diagnostic Trouble Code (DTC) in the
PCM's memory. If the
code applies to a non-emissions related component or
system, and the problem is repaired or ceases to
exist, the PCM cancels the code after 40 warm-up
cycles. Diagnostic trouble codes that affect vehicle
emissions illuminate the Malfunction Indicator
(check engine) Lamp. Refer to Malfunction Indicator
Lamp in this section.
Certain criteria must be met before the PCM
stores a DTC in memory. The criteria may be a specific
range of engine RPM, engine temperature,
and/or input voltage to the PCM.
The PCM might not store a DTC for a monitored
circuit even though a malfunction has occurred. This
may happen because one of the DTC criteria for the
circuit has not been met. For example, assume the
diagnostic trouble code criteria requires the PCM to
monitor the circuit only when the engine operates
between 750 and 2000 RPM. Suppose the sensor's
output circuit shorts to ground when engine operates
above 2400 RPM (resulting in 0 volt input to the
PCM). Because the condition happens at an engine
speed above the maximum threshold (2000 rpm), the
PCM will not store a DTC.
There are several operating conditions for which
the PCM monitors and sets DTC's. Refer to Monitored
Systems, Components, and Non-Monitored Circuits
in this section.

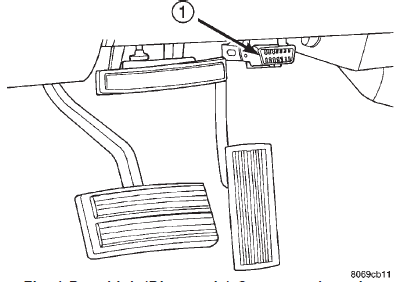

Fig. 1 Data Link (Diagnostic) Connector Location 1 - 16-WAY DATA LINK CONNECTOR Technicians must retrieve stored DTC's by connecting
the DRB scan tool (or an equivalent scan tool) to
the 16-way data link connector (Fig. 1). NOTE: Various diagnostic procedures may actually
cause a diagnostic monitor to set a DTC. For
instance, pulling a spark plug wire to perform a
spark test may set the misfire code. When a repair
is completed and verified, connect the DRB scan
tool to the 16-way data link connector to erase all
DTC's and extinguish the MIL (check engine lamp). DESCRIPTION The Malfunction Indicator Lamp (MIL) is located
on the instrument panel. It is displayed as an engine
icon (graphic). OPERATION As a functional test, the MIL illuminates at key-on
before engine cranking. Whenever the Powertrain
Control Module (PCM) sets a Diagnostic Trouble
Code (DTC) that affects vehicle emissions, it illuminates
the MIL. If a problem is detected, the PCM
sends a message to the instrument cluster to illuminate
the lamp. The PCM illuminates the MIL only
for DTC's that affect vehicle emissions. There are
some monitors that may take two consecutive trips,
with a detected fault, before the MIL is illuminated.
The MIL stays on continuously when the PCM has
entered a Limp-In mode or identified a failed emission
component. Refer to the Diagnostic Trouble Code
charts in this group for emission related codes.
Also, the MIL either flashes or illuminates continuously
when the PCM detects active engine misfire.
Refer to Misfire Monitoring in this section.
Additionally, the PCM may reset (turn off) the MIL
when one of the following occur:Emission system
Malfunction indicator lamp (mil)
