Engine oil pressure sending unit. Crankshaft oil seal-front

Engine oil pressure sending unit

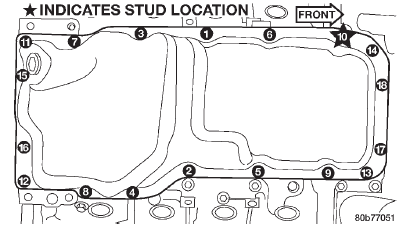

Fig. 122 Oil Pan Tightening Sequence

REMOVAL

(1) Disconnect the negative cable from the battery.

(2) Raise vehicle on hoist.

(3) Remove front splash shield.

(4) Disconnect oil pressure sender wire (Fig. 125).

(5) Remove the pressure sender (Fig. 125).

INSTALLATION

(1) Install oil pressure sender.

(2) Connect oil pressure sender wire.

(3) Install front splash shield.

(4) Lower vehicle.

(5) Connect the negative battery cable.

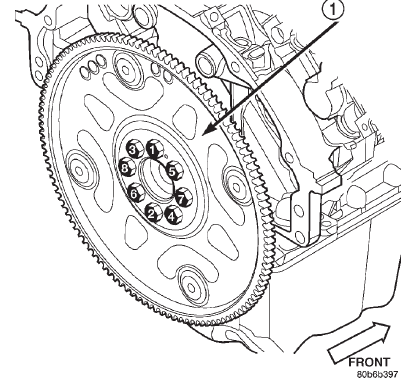

Fig. 123 Flexplate Tightening Sequence

1 - FLEXPLATE

Crankshaft oil seal-front

REMOVAL

(1) Disconnect negative cable from battery.

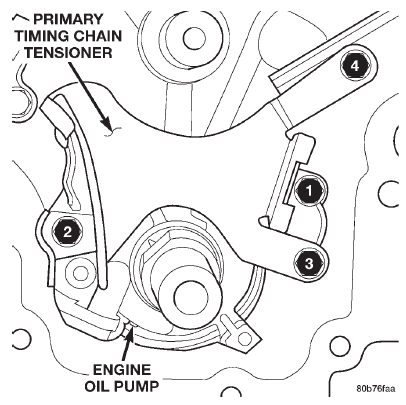

Fig. 124 Oil Pump and Primary Timing Chain Tightening Sequence

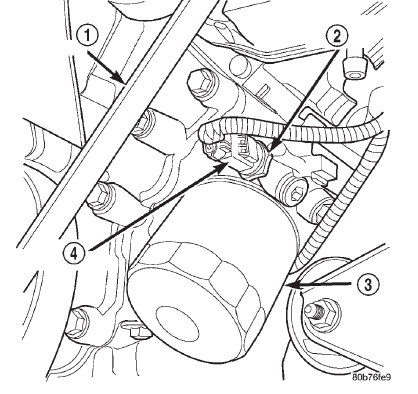

Fig. 125 Oil Pressure Sending Unit

1 - BELT

2 - OIL PRESSURE SENSOR

3 - OIL FILTER

4 - ELEC. CONNECTOR

(2) Remove accessory drive belt refer to Group 7, Cooling System for procedure.

(3) Remove A/C compressor mouning fasteners and set aside.

(4) Drain cooling system. Refer to Group 7, Cooling System for procedure.

(5) Remove upper radiator hose.

(6) Using Special Tools 6958 Spanner with Adapter Pins 8346 loosen fan and viscous assembly from water pump (Fig. 126).

(7) Remove fan and viscous assembly.

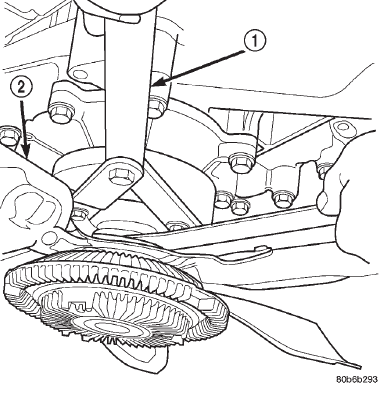

Fig. 126 Fan Assembly-Removal/Installation

1 - SPECIAL TOOL 6958 SPANNER WRENCH WITH ADAPTER PINS 8346

2 - FAN

(8) Disconnect electrical connector for fan mounted inside radiator shroud.

(9) Remove radiator shroud attaching fasteners.

NOTE: Transmission cooler line snaps into shroud lower right hand corner.

(10) Remove radiator shroud.

(11) Remove crankshaft damper bolt.

(12) Remove damper using Special Tools 8513 Insert and 1026 Three Jaw Puller (Fig. 127).

(13) Using Special Tool 8511, remove crankshaft front seal (Fig. 128).

INSTALLATION

CAUTION: To prevent severe damage to the Crankshaft, Damper or Special Tool 8512, thoroughly clean the damper bore and the crankshaft nose before installing Damper.

(1) Using Special Tool 8348 and 8512, install crankshaft front seal (Fig. 129).

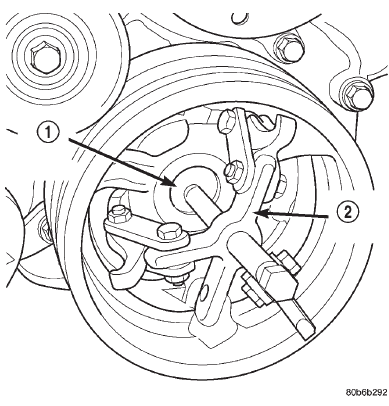

Fig. 127 Crankshaft Damper-Removal

1 - SPECIAL TOOL 8513 INSERT

2 - SPECIAL TOOL 1026

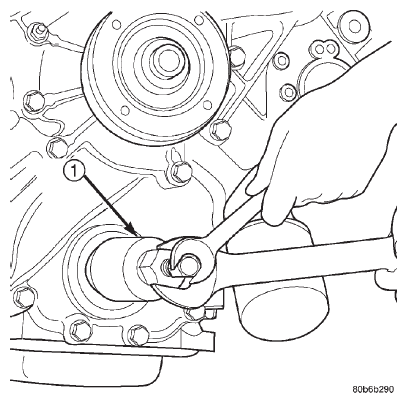

Fig. 128 Crankshaft Front Seal-Removal

1 - SPECIAL TOOL 8511

CAUTION: Special Tool 8512, is assembled in a specific sequence. Failure to assemble this tool in this sequence can result in tool failure and severe damage to either the tool or the crankshaft.

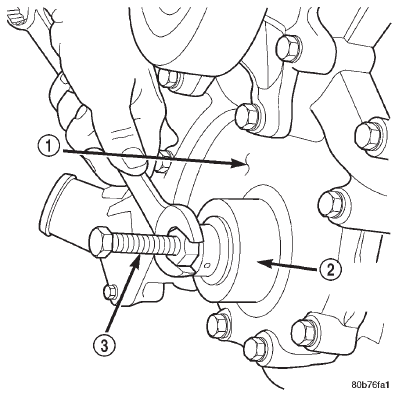

Fig. 129 Crankshaft Front Seal-Installation

1 - TIMING CHAIN COVER

2 - SPECIAL TOOL 8348

3 - SPECIAL TOOL 8512

(2) Assemble Special Tool 8512 as follows, The nut is threaded onto the shaft first. Then the roller bearing is placed onto the threaded rod (The hardened bearing surface of the bearing MUST face the nut).

Then the hardened washer slides onto the threaded rod (Fig. 130). Once assembled coat the threaded rod's threads with Mopart Nickel Anti-Seize or (Loctite No. 771).

(3) Align crankshaft damper slot with key in crankshaft. Slide damper onto crankshaft slightly.

(4) Using Special Tool 8512 press damper onto crankshaft (Fig. 131).

(5) Install then tighten crankshaft damper bolt to 175 N*m (130 ft. lbs.).

(6) Install radiator shroud and tighten fasteners to 11 N*m (95 in. lbs.).

(7) Connect electrical connector for shroud fan.

(8) Install fan and viscous assembly.

(9) Using Special Tools 6958 Spanner with Adapter Pins 8346 tighten fan and viscous assembly to water pump (Fig. 126).

(10) Install upper radiator hose.

(11) Install A/C compressor and tighten fasteners to 54 N*m (40 ft. lbs.).

(12) Install accessory drive belt refer to Group 7, Cooling System for procedure.

(13) Refill cooling system. Refer to Group 7, Cooling System for procedure.

(14) Connect negative cable to battery.

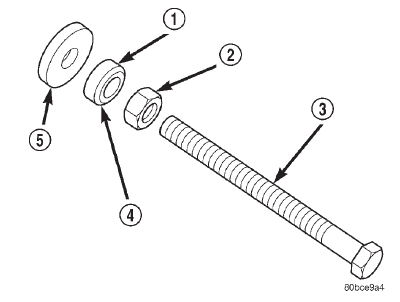

Fig. 130 Proper Assembly Method for Special Tool 8512

1 - BEARING

2 - NUT

3 - THREADED ROD

4 - BEARING HARDENED SURFACE (FACING NUT)

5 - HARDENED WASHER

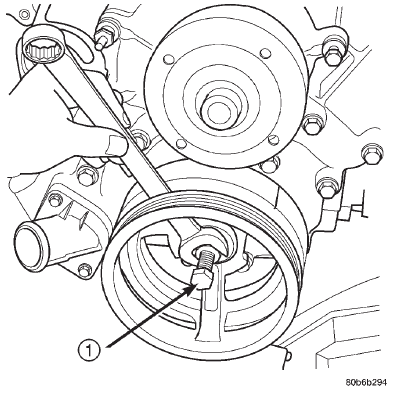

Fig. 131 Crankshaft Damper-Installation

1 - SPECIAL TOOL 8512
