Low pressure cut-off switch. Mode door vacuum actuator

Low pressure cut-off switch

REMOVAL

(1) Disconnect and isolate the battery negative cable.

(2) Unplug the wire harness connector from the low pressure cut-off switch on the suction line jumper near the expansion valve (Fig. 75).

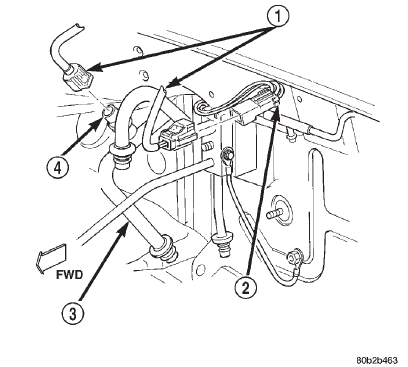

Fig. 75 Low Pressure Cut-Off Switch Remove/Install

1 - WIRE HARNESS CONNECTORS

2 - TO ELECTRONIC CYCLING CLUTCH SWITCH

3 - SUCTION LINE JUMPER

4 - LOW PRESSURE CUT-OFF SWITCH

(3) Unscrew the low pressure cut-off switch from the fitting on the suction line jumper.

(4) Remove the O-ring seal from the suction line jumper fitting and discard.

INSTALLATION

(1) Lubricate a new O-ring seal with clean refrigerant oil and install it on the suction line jumper fitting.

Use only the specified O-rings as they are made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the compressor in the vehicle.

(2) Install and tighten the low pressure cut-off switch on the suction line jumper fitting. The switch should be hand-tightened onto the fitting.

(3) Plug the wire harness connector into the low pressure cut-off switch.

(4) Connect the battery negative cable.

Mode door vacuum actuator

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO GROUP 8M - PASSIVE RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

FLOOR-DEFROST DOOR ACTUATOR

(1) Disconnect and isolate the battery negative cable.

(2) Remove the instrument panel assembly from the vehicle. Refer to Instrument Panel Assembly in the Removal and Installation section of Group 8E - Instrument Panel Systems for the procedures.

(3) Unplug the two vacuum harness connectors from the floor-defrost door actuator (Fig. 76).

(4) Remove the push nut retainer that secures the floor-defrost door actuator link to the floor-defrost door crank arm.

(5) Remove the two screws that secure the floordefrost door actuator to the heater-A/C housing.

(6) Disengage the floor-defrost door actuator link from the floor-defrost door crank arm and remove the actuator from the heater-A/C housing.

(7) Reverse the removal procedures to install.

Tighten the floor-defrost door actuator mounting screws to 2.2 N*m (20 in. lbs.).

PANEL-DEFROST DOOR ACTUATOR

(1) Disconnect and isolate the battery negative cable.

(2) Remove the instrument panel assembly from the vehicle. Refer to Instrument Panel Assembly in the Removal and Installation section of Group 8E - Instrument Panel Systems for the procedures.

(3) Unplug the vacuum harness connector from the panel-defrost door actuator (Fig. 77).

(4) Remove the two screws that secure the paneldefrost door actuator to the heater-A/C housing.

(5) Rotate the panel-defrost door actuator clockwise about one-quarter turn to disengage the hooked end of the actuator link from the hole on the end of the panel-defrost door lever.

(6) Remove the panel-defrost door actuator from the heater-A/C housing.

(7) Reverse the removal procedures to install.

Tighten the panel-defrost door actuator mounting screws to 2.2 N*m (20 in. lbs.).

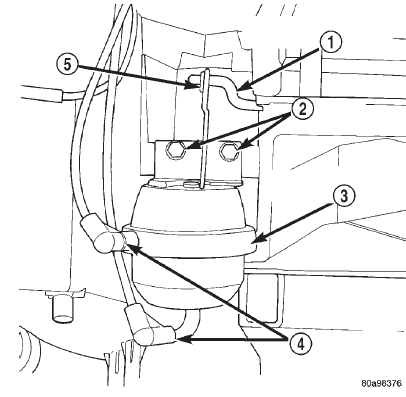

Fig. 76 Floor-Defrost Door Actuator Remove/Install

1 - FLOOR-DEFROST DOOR CRANK ARM

2 - SCREWS

3 - FLOOR-DEFROST DOOR ACTUATOR

4 - VACUUM CONNECTORS

5 - PUSH NUT

RECIRCULATION AIR DOOR ACTUATOR

A recirculation air door and vacuum actuator are used only on models with the optional air conditioning system.

(1) Disconnect and isolate the battery negative cable.

(2) Remove the instrument panel assembly from the vehicle. Refer to Instrument Panel Assembly in the Removal and Installation section of Group 8E - Instrument Panel Systems for the procedures.

(3) If the vehicle is so equipped, and the heater- A/C housing is in its installed position in the vehicle, remove the Infinity speaker system amplifier. Refer to Amplifier in the Removal and Installation section of Group 8F - Audio Systems for the procedures.

(4) Unplug the two vacuum harness connectors from the recirculation air door actuator (Fig. 78).

(5) Remove the two stamped nuts that secure the recirculation air door actuator to the blower motor housing cover.

(6) Unhook the actuator link from the recirculation air door lever.

(7) Remove the actuator from the blower motor housing cover.

(8) Reverse the removal procedures to install.

Tighten the mounting nuts until the recirculation air door actuator is seated to the blower motor housing cover.

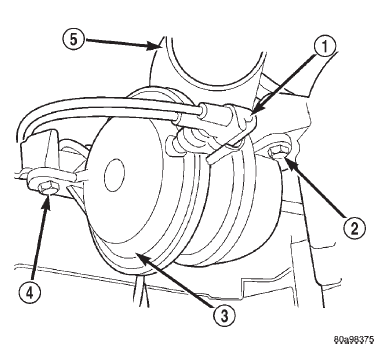

Fig. 77 Panel-Defrost Door Actuator

1 - VACUUM CONNECTOR

2 - SCREW

3 - PANEL-DEFROST DOOR ACTUATOR

4 - SCREW

5 - DEMISTER DUCT ADAPTER
