Overdrive housing bushing. Output shaft rear bearing

Overdrive housing bushing

REMOVAL

(1) Remove overdrive housing yoke seal.

(2) Insert Remover 6957 into overdrive housing.

Tighten tool to bushing and remove bushing (Fig.

95).

INSTALLATION

(1) Align bushing oil hole with oil slot in overdrive housing.

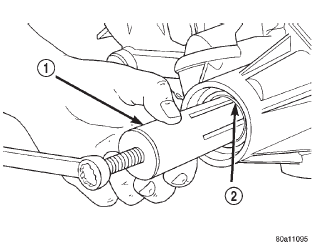

Fig. 95 Bushing Removal-Typical

1 - REMOVER 6957

2 - EXTENSION HOUSING BUSHING

(2) Tap bushing into place with Installer 6951 and Handle C-4171.

(3) Install new oil seal in housing using Seal Installer C-3995-A (Fig. 96).

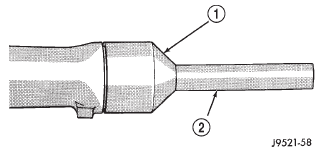

Fig. 96 Overdrive Housing Seal Installation

1 - SPECIAL TOOL C-3995-A OR C-3972-A

2 - SPECIAL TOOL C-4471

REMOVAL

(1) Remove overdrive unit from the vehicle.

(2) Remove overdrive geartrain from housing.

(3) Remove snap ring holding output shaft rear bearing into overdrive housing (Fig. 97).

(4) Using a suitable driver inserted through the rear end of housing, drive bearing from housing.

INSTALLATION

(1) Place replacement bearing in position in housing.

(2) Using a suitable driver, drive bearing into housing until the snap ring groove is visible.

(3) Install snap ring to hold bearing into housing (Fig. 97).

(4) Install overdrive geartrain into housing.

(5) Install overdrive unit in vehicle.

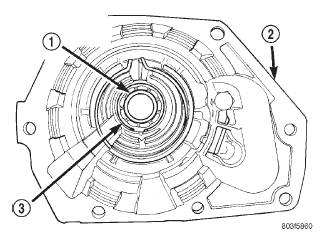

Fig. 97 Output Shaft Rear Bearing

1 - OUTPUT SHAFT REAR BEARING

2 - OVERDRIVE HOUSING

3 - SNAP RING
