Paperclip. Compass mini-trip computer

Paperclip

REMOVAL

(1) Disconnect and isolate the battery negative cable.

(2) Remove the overhead console from the headliner.

Refer to Overhead Console in the Removal and Installation section of this group for the procedures.

(3) Remove the four screws that secure the paperclip to the overhead console housing.

(4) Pull the paperclip away from the overhead console far enough to access the wire harness connectors.

(5) Disengage the overhead console wire harness connector from the mount on the paperclip by pushing the connector firmly toward the left side of the overhead console housing.

(6) Remove the paperclip from the overhead console housing.

INSTALLATION

(1) Position the paperclip onto the overhead console housing.

(2) Engage the overhead console wire harness connector onto the mount on the paperclip by aligning the channels on the connector with the tab on the mount and pushing the connector firmly toward the right side of the overhead console housing.

(3) Install and tighten the four screws that secure the paperclip to the overhead console housing.

Tighten the screws to 2.2 N*m (20 in. lbs.).

(4) Install the overhead console onto the headliner.

Refer to Overhead Console in the Removal and Installation section of this group for the procedures.

(5) Reconnect the battery negative cable.

Compass mini-trip computer

REMOVAL

(1) Disconnect and isolate the battery negative cable.

(2) Remove the overhead console from the headliner.

Refer to Overhead Console in the Removal and Installation section of this group for the procedures.

(3) Remove the four screws that secure the compass mini-trip computer module to the overhead console housing (Fig. 7).

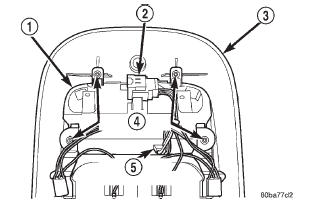

Fig. 7 Compass Mini-Trip Computer Remove/Install

1 - COMPASS MINI-TRIP COMPUTER MODULE

2 - OVERHEAD CONSOLE WIRE HARNESS CONNECTOR

3 - OVERHEAD CONSOLE HOUSING

4 - SCREW (4)

5 - COMPUTER CONNECTOR

(4) Pull the compass mini-trip computer module away from the overhead console far enough to access the wire harness connectors.

(5) Disengage the overhead console wire harness connector from the mount on the compass mini-trip computer module housing by pushing the connector firmly toward the left side of the overhead console housing.

(6) Disconnect the overhead console wire harness connector from the compass mini-trip computer module connector receptacle.

(7) Remove the compass mini-trip computer module from the overhead console housing.

INSTALLATION

(1) Position the compass mini-trip computer module onto the overhead console housing.

(2) Reconnect the overhead console wire harness connector to the compass mini-trip computer module connector receptacle.

(3) Engage the overhead console wire harness connector onto the mount on the compass mini-trip computer module housing by aligning the channels on the connector with the tab on the mount and pushing the connector firmly toward the right side of the overhead console housing.

(4) Install and tighten the four screws that secure the compass mini-trip computer module to the overhead console housing. Tighten the screws to 2.2 N*m (20 in. lbs.).

(5) Install the overhead console onto the headliner.

Refer to Overhead Console in the Removal and Installation section of this group for the procedures.

(6) Reconnect the battery negative cable.

NOTE: If a new compass mini-trip computer has been installed, the compass will have to be calibrated and the variance set. Refer to Compass Variation Adjustment and Compass Calibration in the Service Procedures section of this group for the procedures.
