Rear servo. Oil pump and reaction shaft support
Remove and discard the servo piston seal ring (Fig.
304). Then clean the servo components with solvent
and dry with compressed air. Replace either spring if
collapsed, distorted or broken. Replace the plug and
piston if cracked, bent, or worn. Discard the servo
snap rings and use a new ones at assembly.

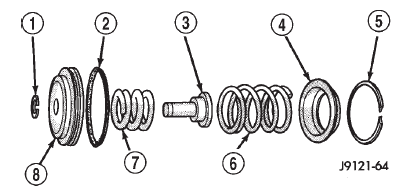

Fig. 304 Rear Servo Components 1 - SNAP RING 2 - PISTON SEAL 3 - PISTON PLUG 4 - SPRING RETAINER 5 - SNAP RING 6 - PISTON SPRING 7 - CUSHION SPRING 8 - PISTON (1) Clean pump and support components with solvent
and dry them with compressed air.
(2) Check condition of the seal rings and thrust
washer on the reaction shaft support. The seal rings
do not need to be replaced unless cracked, broken, or
severely worn.
(3) Inspect the pump and support components.
Replace the pump or support if the seal ring grooves
or machined surfaces are worn, scored, pitted, or
damaged. Replace the pump gears if pitted, worn
chipped, or damaged.
(4) Inspect the pump bushing. Then check the
reaction shaft support bushing. Replace either bushing
only if heavily worn, scored or damaged. It is not
necessary to replace the bushings unless they are
actually damaged.
(5) Install the gears in the pump body and measure
pump component clearances as follows:
(a) Clearance between outer gear and reaction
shaft housing should be 0.010 to 0.063 mm (0.0004
to 0.0025 in.). Clearance between inner gear and
reaction shaft housing should be 0.010 to 0.063
mm (0.0004 to 0.0025 in.). Both clearances can be
measured at the same time by:
(I) Installing the pump gears in the pump
housing.
(II) Position an appropriate piece of Plastigagey
across both gears.
(III) Align the plastigage to a flat area on the
reaction shaft housing.
(IV) Install the reaction shaft to the pump
housing.
(V) Separate the reaction shaft housing from
the pump housing and measure the Plastigagey
following the instructions supplied with it.
(b) Clearance between inner gear tooth and
outer gear should be 0.08 to 0.19 mm (0.0035 to
0.0075 in.). Measure clearance with an appropriate
feeler gauge.
(c) Clearance between outer gear and pump
housing should also be 0.010 to 0.19 mm (0.0035 to
0.0075 in.). Measure clearance with an appropriate
feeler gauge.Rear servo
