Removal and installation
REMOVAL (1) Shift the transmission and transfer case to
their neutral positions. Raise and support vehicle.
Remove skid plate, if equipped.
(2) Using a suitable marker, mark a line across
the yoke at the transfer case, the link yoke, and propeller
shaft yoke at the rear of the front propeller
shaft for installation reference.
(3) Mark a line across the propeller shaft companion
yoke and flange at the front axle for installation
reference.

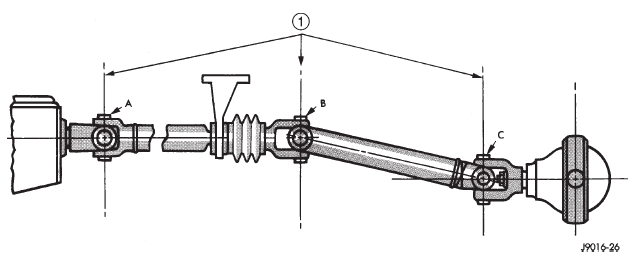

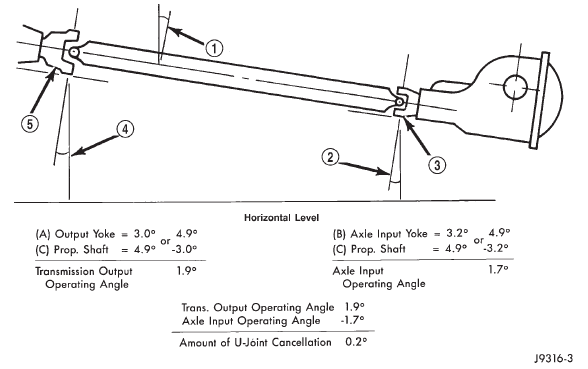

Fig. 14 Universal Joint Angle Example 1 - 4.9 Angle (C) 2 - 3.2 Angle (B) 3 - Input Yoke 4 - 3.0 Angle (A) 5 - Output Yoke
Fig. 15 Universal Joint Angle-Two-Piece Shaft 1 - YOKES MUST BE IN SAME PLANE (4) Remove the bolts holding the companion yoke
to the companion flange (Fig. 16).
(5) Remove the bolts holding the propeller shaft to
the transfer case yoke.
(6) Remove the propeller shaft.

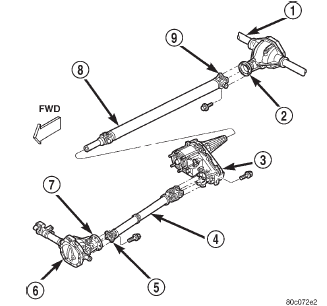

Fig. 16 Front Propeller Shaft 1 - REAR AXLE 2 - COMPANION FLANGE 3 - TRANSFER CASE 4 - FRONT PROPELLER SHAFT 5 - COMPANION YOKE 6 - FRONT AXLE 7 - COMPANION FLANGE 8 - REAR PROPELLER SHAFT 9 - COMPANION YOKE INSTALLATION (1) Position front propeller shaft under vehicle
with rear universal joint over the transfer case yoke
flange.
(2) Place front companion yoke into the axle companion
flange.
(3) Align mark on the link yoke and universal joint
to the mark on the transfer case yoke flange.
(4) Loosely install bolts to hold universal joint to
transfer case yoke.
(5) Align the mark on companion yoke to the mark
on the companion flange.
(6) Install bolts to hold the companion yoke to the
companion flange. Tighten bolts to 108 N*m (80 ft.
lbs.).
(7) Tighten bolts to hold universal joint to transfer
case yoke to 27 N*m (20 ft. lbs.).
(8) Install skid plate, if equipped.
(9) Lower vehicle and road test to verify repair. REMOVAL (1) Raise and support vehicle on safety stands.
(2) Shift the transmission to the Neutral position.
(3) Using a suitable marker, mark a line across
the axle companion flange and yoke for installation
reference.
(4) Using a suitable marker, mark the outline of
the center bearing on the support bracket for installation
reference, if equipped.
(5) Using a suitable marker, mark the outline of
the heat shield on the center bearing for installation
reference, if equipped.
(6) Remove bolts that attach the center bearing
and heat shield to the support bracket, if equipped.
(7) Remove the bolts holding the companion yoke
to the companion flange.
(8) Slide the slip yoke off of the transmission, or
transfer case, output shaft and remove the propeller
shaft (Fig. 17).

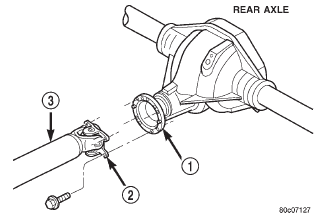

Fig. 17 Rear Propeller Shaft 1 - COMPANION FLANGE 2 - COMPANION YOKE 3 - REAR PROPELLER SHAFT INSTALLATION (1) Slide the slip yoke onto the transmission, or
transfer case, output shaft.
(2) Align and install the center bearing and heat
shield to the support bracket, if necessary.
(3) Install the bolts and tighten to 68 N*m (50 ft.
lbs.) torque.
(4) Align the installation reference marks made on
the companion flange and yoke.
(5) Position the companion yoke onto the companion
flange.
(6) Install the bolts to hold the companion yoke to
the companion flange. Tighten the bolts to 108 N*m
(80 ft. lbs.) torque.
(7) Lower the vehicle. REMOVAL (1) Remove rear propeller shaft.
(2) Remove slip joint boot clamp and separate the
two half-shafts.
(3) Use hammer and punch to tap slinger away
from shaft to provide room for bearing splitter.
(4) Position Bearing Splitter Tool 1130 between
slinger and shaft. CAUTION: Do not damage shaft spline during
removal of center bearing. (5) Set shaft in press and press bearing off the
shaft. INSTALLATION (1) Install new slinger on shaft and drive into position
with appropriate installer tool.
(2) Install new center bearing on shaft with Bearing
Installer Tool 6052. Drive on shaft with hammer
until bearing is seated.
(3) Clean shaft splines and apply a coat of multi-
purpose grease.
(4) Align master splines and slide front and rear
half-shafts together. Reposition slip yoke boot and
install new clamp.
(5) Install propeller shaft in vehicle.Front propeller shaft
Rear propeller shaft
Center bearing
