Specifications

Torque chart

DESCRIPTION    TORQUE

Engine Coolant Temperature Sensor-All Engines . . . . . . . 11 N*m (96 in. lbs.)

IAC Motor-To-Throttle Body Bolts . . . . . . . . . . . . . . . 7 N*m (60 in. lbs.)

Intake Manifold Air Temp.

Sensor-All Engines . . . . . . . 28 N*m (20 ft. lbs.)

MAP Sensor Mounting Screws-All Engines . . . . . . . 3 N*m (25 in. lbs.)

Oxygen Sensor-All Engines . . . 30 N*m (22 ft. lbs.)

Powertrain Control Module Mounting Screws . . . . . 3-5 N*m (30-40 in. lbs.)

Throttle Body Mounting Bolts . . . . . . . . . . 23 N*m (200 in. lbs.)

Throttle Position Sensor Mounting Screws-All Engines . . . . . . . 7 N*m (60 in. lbs.)

Special tools

Fuel system

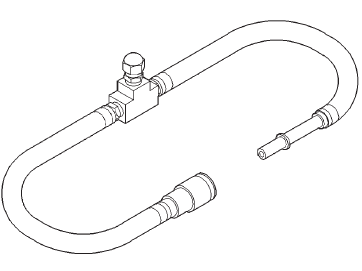

Fitting, Air Metering-6714

Adapters, Fuel Pressure Test-6539 and/or 6631

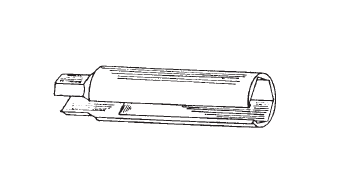

O2S (Oxygen Sensor) Remover/Installer-C-4907

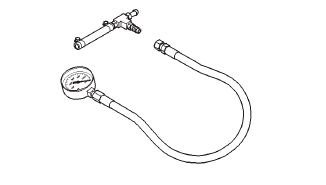

Test Kit, Fuel Pressure-C-4799-B

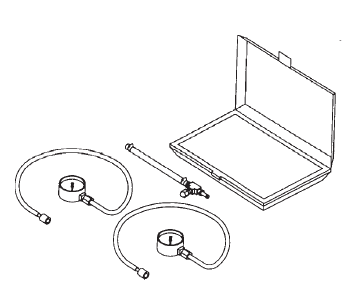

Test Kit, Fuel Pressure-5069

Fuel Line Removal Tool-6782
