Speed control servo. Speed control switches
REMOVAL (1) Disconnect negative battery cable at battery.
(2) Disconnect vacuum hose (line) at servo (Fig. 1).
(3) Disconnect electrical connector at servo.
(4) Disconnect servo cable at throttle body. Refer to
Servo Cable Removal/Installation in this group.
(5) Remove 2 mounting nuts holding servo cable
sleeve to bracket (Fig. 1) or (Fig. 2).
(6) Pull speed control cable sleeve and servo away
from servo mounting bracket to expose cable retaining
clip (Fig. 2) and remove clip. Note: The servo
mounting bracket displayed in (Fig. 2) is a typical
bracket and may/may not be applicable to this model
vehicle.
(7) Remove servo from mounting bracket. While
removing, note orientation of servo to bracket. INSTALLATION (1) Position servo to mounting bracket.
(2) Align hole in cable connector with hole in servo
pin. Install cable-to-servo retaining clip.
(3) Insert servo mounting studs through holes in
servo mounting bracket.
(4) Install servo mounting nuts and tighten to 8.5
N*m (75 in. lbs.).
(5) Connect vacuum line at servo.

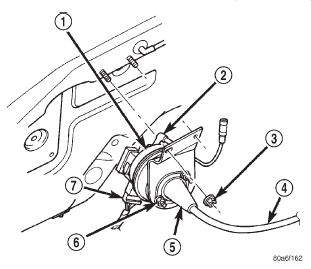

Fig. 1 Speed Control Servo Location 1 - SPEED CONTROL SERVO 2 - VACUUM HOSE 3 - SERVO BRACKET NUTS (2) 4 - SERVO CABLE 5 - CABLE SLEEVE 6 - SERVO MOUNTING NUTS (2) 7 - ELECTRICAL CONNECTOR

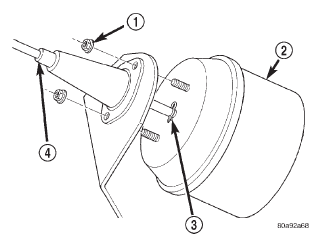

Fig. 2 Servo Cable Clip Remove/Install-Typical 1 - SERVO MOUNTING NUTS (2) 2 - SERVO 3 - CABLE RETAINING CLIP 4 - SERVO CABLE AND SLEEVE (6) Connect electrical connector at servo.
(7) Connect servo cable to throttle body. Refer to
Servo Cable Removal/Installation in this group.
(8) Connect negative battery cable to battery.
(9) Before starting engine, operate accelerator
pedal to check for any binding. REMOVAL WARNING: BEFORE BEGINNING ANY AIRBAG SYSTEM
COMPONENT REMOVAL OR INSTALLATION,
REMOVE AND ISOLATE THE NEGATIVE (-) CABLE
FROM THE BATTERY. THIS IS THE ONLY SURE
WAY TO DISABLE THE AIRBAG SYSTEM. THEN
WAIT TWO MINUTES FOR SYSTEM CAPACITOR TO
DISCHARGE BEFORE FURTHER SYSTEM SERVICE.
FAILURE TO DO THIS COULD RESULT IN ACCIDENTAL
AIRBAG DEPLOYMENT AND POSSIBLE
INJURY. (1) Disconnect and isolate negative battery cable.
(2) Remove airbag module. Refer to Group 8M,
Passive Restraint Systems for procedures.
(3) Remove switch-to-steering wheel mounting
screws (Fig. 3).
(4) Remove switch.
(5) Remove electrical connector at switch.
Fig. 3 Speed Control Switches 1 - MOUNTING SCREWS (2) 2 - SPEED CONTROL SWITCHES (2) INSTALLATION (1) Install electrical connector to switch.
(2) Install switch and mounting screws.
(3) Tighten screws to 1.5 N*m (14 in. lbs.) torque.
(4) Install airbag module. Refer to Group 8M, Passive
Restraint Systems for procedures.
(5) Connect negative battery cable.Speed control servo
Speed control switches
Dodge Durango (DN) 1998-2003 Service Manual
