Torque specifications

BODY COMPONENTS

DESCRIPTION   -   TORQUE

Bucket seat track to cushion frame bolt . . . 24 N*m (17 ft. lbs.)

Bucket seat back pivot bolt . . . . 33 N*m (24 ft. lbs.)

Center seat to seat track bolt . . 24 N*m (17 ft. lbs.)

Front seat belt buckle anchor nut . . . . . . . . 40 N*m (29 ft. lbs.)

Front seat belt retractor bolt . . . 38 N*m (28 ft. lbs.)

Front seat belt buckle anchor bolt . . . . . . . . 40 N*m (29 ft. lbs.)

Front door hinge to hinge pillar bolt . . . . . . 28 N*m (21 ft. lbs.)

Front door hinge to door nuts and bolt . . . . 28 N*m (21 ft. lbs.)

Front door latch striker . . . . . . . 28 N*m (20 ft. lbs.)

Floor latch to seat cushion frame bolt . . . . . 27 N*m (19 ft. lbs.)

Front seat rear inboard seat track to floor pan bolts . . . . . . . . . . . . . . . . . . . 40 N*m (30 ft. lbs.)

Front seat rear outboard seat track to floor pan bolts . . . . . . . . . . . . . . . . . . . 28 N*m (20 ft. lbs.)

Front seat front seat track to floor pan bolts . . . . . . . . . . . . . . . . . . . 28 N*m (20 ft. lbs.)

2nd row seat back hinge bolt . . . 27 N*m (19 ft. lbs.)

2nd row center seat back to seat cushion bolt . . . . . . . . . . . . . . . . . . . . 27 N*m (19 ft. lbs.)

2nd row seat belt/buckle anchor bolt . . . . . . 95 N*m (70 ft. lbs.)

2nd row inboard seat anchor bolt . . . . . . . . 95 N*m (70 ft. lbs.)

2nd row outboard seat anchor bolt . . . . . . . 27 N*m (20 ft. lbs.)

2nd row seat belt turning loop bolt . . . . . . . 38 N*m (28 ft. lbs.)

3rd row seat cushion to lift bar bolt . . . . . . 27 N*m (19 ft. lbs.)

3rd row seat back to mounting brkt bolt . . . 27 N*m (19 ft. lbs.)

3rd row seat belt anchor bolt . . 38 N*m (28 ft. lbs.)

3rd row seat belt retractor anchor bolt . . . . 38 N*m (28 ft. lbs.)

3rd row seat belt buckle anchor bolt . . . . . . 95 N*m (70 ft. lbs.)

Liftgate latch striker . . . . . . . . . 22 N*m (16 ft. lbs.)

Rear door glass to regulator bolt . . . . . . . . . 11 N*m (105 in. lbs.)

Rear door hinge to B-pillar bolt . 28 N*m (20 ft. lbs.)

Rear door hinge to door bolt . . . 28 N*m (20 ft. lbs.)

Rear door latch striker . . . . . . . 28 N*m (20 ft. lbs.)

Rear door stationary glass to door nut . . . . . 3 N*m (11 in. lbs.)

Side rear view mirror . . . . . . . . . 7 N*m (65 in. lbs.)

Tumble latch to seat cushion frame bolt . . . 27 N*m (19 ft. lbs.)

Special tools

Body

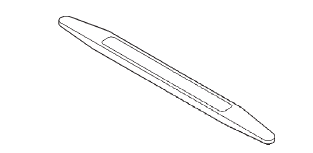

Trim Stick C-4755

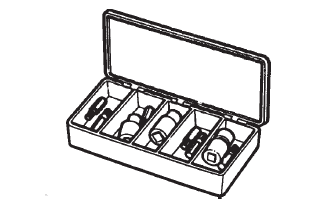

Torx Bit Set C-4794-B

Molding Remover C-4829
