2Nd row seat back. 2Nd row seat back cover

2Nd row seat back

REMOVAL

(1) Tumble seat forward.

(2) Remove tumble release outboard handle.

(3) Remove inboard & outboard side shields (Fig.

7).

(4) Disengage J-straps to access inboard and outboard bolts attaching seat back to hinge (Fig. 8).

(5) Remove bolts attaching hinge to seat back.

(6) Separate seat back from vehicle.

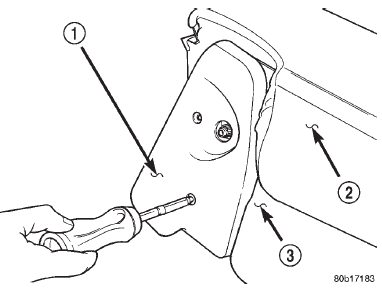

Fig. 7 2nd Row Seat Side Shield

1 - OUT BOARD SIDE SHIELD

2 - SEAT BACK

3 - SEAT CUSHION

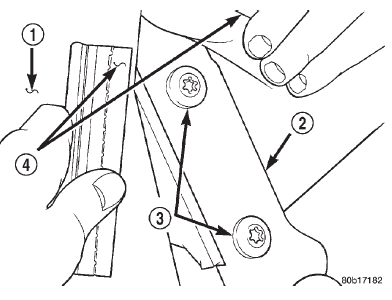

Fig. 8 2nd Row Seat Back J-Straps

1 - SEAT BACK

2 - HINGE BRACKET

3 - BOLTS

4 - J-STRAP

INSTALLATION

(1) Position seat back in vehicle.

(2) Install bolts attaching hinge to seat back.

Tighten bolts to 27 N*m (19 ft. lbs.) torque.

(3) Engage inboard and outboard J-straps.

(4) Install inboard & outboard side shields (Fig. 7).

(5) Install tumble release outboard handle.

(6) Return seat to seating position.

2Nd row seat back cover

NOTE: CLOTH TRIM IS BONDED TO SEAT FOAM

REMOVAL

(1) Tumble seat forward.

(2) Disengage J-strap at seat back base.

(3) Disengage inboard and outboard J-straps on seat back.

(4) Return seat to seating position.

NOTE: When removing the head restraint sleeves and guides, the retaining tabs on the sleeves and guides will be damaged. Check the availability of replacement parts before servicing.

(5) Remove head restraint, head restraint sleeves, and head restraint guides. Discard sleeves and guides.

(6) Roll cover upward and remove from seat back.

INSTALLATION

(1) Position cover on seat back.

(2) Roll cover downward over seat back.

(3) Install new head restraint sleeves and guides.

Install head restraint.

(4) Tumble seat forward.

(5) Engage inboard and outboard J-straps on seat back.

(6) Engage J-strap at seat back base.

(7) Return seat to seating position.
