Center armrest/console inertia latch cover. Center seat cushion/cover

Center armrest/console inertia latch cover

REMOVAL

1) Move the drivers seat position to full forward with seat back full forward.

(2) Place center arm rest in the down position.

(3) Remove the screw securing the cover to the inertia latch (Fig. 5).

(4) Remove the upper and lower inertia latch covers.

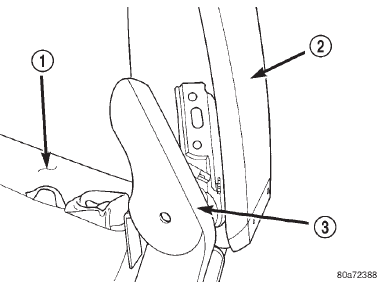

Fig. 5 Armrest/Console Inertia Latch Cover Fig. 5 Armrest/Console Inertia Latch Cover

1 - SEAT CUSHION

2 - SEAT BACK/CONSOLE LID

3 - HINGE COVER

INSTALLATION

(1) Install the upper latch cover onto the upper latch inertia arm. Ensure the check strap loops under the stud on the side of the lower stanchion/ post.

(2) Install the lower latch cover onto the inertia latch upper arm working it around the latch bracket.

(3) Align the lower latch cover, the upper latch cover, and the latch bracket to the screw hole on the arm.

(4) Secure the cover with the screw and tighten to 4.15N*m (37 in. lbs.).

(5) Cycle the armrest through a full range of travel and check for freedom of movement. Adjust the latch covers as necessary.

Center seat cushion/cover

REMOVAL

(1) Remove the bucket seats.

(2) Separate the center seat from the bucket seats.

(3) Remove the armrest/seat back.

(4) Disengage the J-straps from the cushion frame (Fig. 6).

(5) Separate the cushion/cover from the frame.

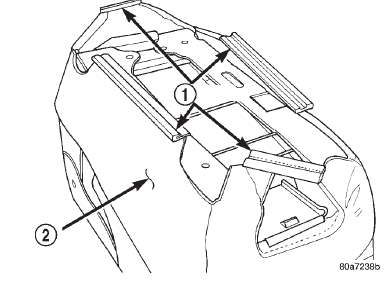

Fig. 6 Center Seat Cushion/Cover Fig. 6 Center Seat Cushion/Cover

1 - J-STRAPS

2 - CENTER SEAT CUSHION COVER

INSTALLATION

(1) Position the cushion/cover on the frame.

(2) Engage the J-straps from the cushion frame.

(3) Install the armrest/seat back.

(4) Attach the center seat to the bucket seats.

(5) Install the bucket seats.
