Cowl grille. Cowl seal

Cowl grille

REMOVAL

(1) Open hood.

(2) Mark wiper arm locations on windshield with grease pencil.

(3) Lift cover for wiper arms and remove nuts attaching wiper arms to cowl.

(4) Remove upper plastic nuts attaching cowl grille to cowl (Fig. 9).

(5) Insert a small flat blade into the slots of the plastic rivet anchors in each cowl grille corner. Lift up on the flat blade to release the rivet anchors.

(6) Remove cowl weatherstrip.

(7) Disconnect and plug windshield washer feed line from cowl.

(8) Disconnect vacuum line from cowl.

(9) Separate cowl grille from cowl.

INSTALLATION

(1) Position cowl grille on cowl.

(2) Connect vacuum line to cowl.

(3) Remove the plug and connect windshield washer feed line to cowl.

(4) Install cowl weatherstrip.

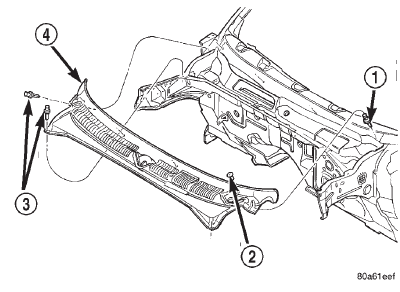

Fig. 9 Cowl Grille

1 - STUD

2 - PLASTIC NUT

3 - PLASTIC RIVET

4 - COWL GRILLE

(5) Position rivet anchors in place and press down to engage.

(6) Install upper plastic nuts attaching cowl grille to cowl.

(7) Align wiper arms and install the nuts.

Cowl seal

REMOVAL

(1) Grasp cowl seal and pull seal from flange (Fig.

10).

(2) Separate cowl seal from vehicle.

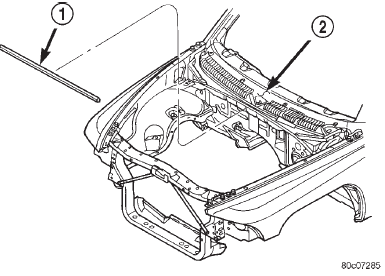

Fig. 10 Cowl Seal

1 - COWL TO HOOD SEAL

2 - COWL

INSTALLATION

(1) Position cowl seal on flange and press into place.
