Hood seal. Front wheelhouse liner

Hood seal

REMOVAL

(1) Remove push-in fasteners attaching hood seal to inner hood panel (Fig. 11).

(2) Separate hood seal from vehicle.

INSTALLATION

(1) Position hood seal on inner hood panel.

(2) Install push-in fasteners attaching hood seal to inner hood panel.

Front wheelhouse liner

REMOVAL

(1) Raise and support the front wheel.

(2) Remove the front wheel.

(3) Remove wheel opening molding.

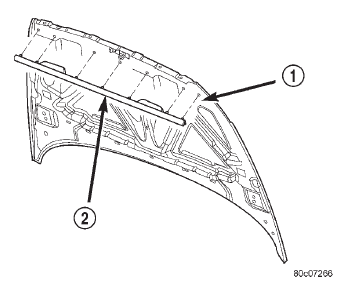

Fig. 11 Hood Seal

1 - INNER HOOD PANEL

2 - HOOD PANEL

(4) Remove plastic rivets attaching wheelhouse liner to wheelhouse (Fig. 12).

(5) Separate liner from vehicle.

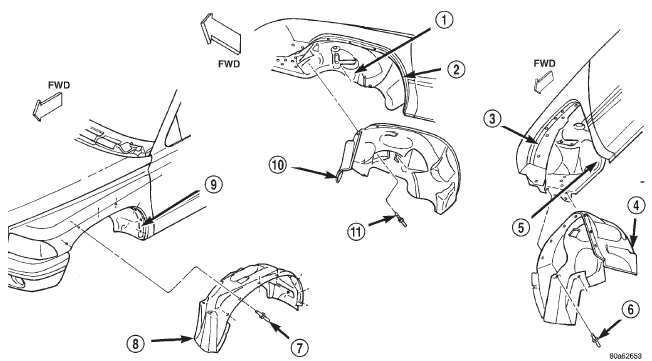

Fig. 12 Front Wheelhouse Liner

1 - FENDER SPLASH SHIELD

2 - INNER FENDER

3 - INNER FENDER

4 - WHEELHOUSE LINER

5 - FENDER SPLASH SHIELD

6 - PLASTIC RIVET

7 - PLASTIC RIVET

8 - WHEELHOUSE LINER

9 - INNER FENDER

10 - WHEELHOUSE LINER

11 - PLASTIC RIVET

INSTALLATION

(1) Position liner in wheelhouse.

(2) Install plastic rivets attaching wheelhouse liner to wheelhouse.

(3) Install wheel opening molding.

(4) Install the front wheel.

(5) Remove the support and lower the vehicle.
