Left front fender. Right front fender

Left front fender

REMOVAL

(1) Remove battery.

(2) Raise and support the vehicle.

(3) Remove left front wheel.

(4) Remove wheel opening molding.

(5) Remove wheelhouse liner.

(6) Remove left headlamp module.

(7) Remove PDC (power distribution center).

(8) Remove battery tray and battery support bracket (Fig. 13).

(9) Remove HCU (hydraulic control unit) if equipped. Refer to Group 5, Brakes for service procedures.

(10) Disengage clips attaching hood release cable to inner fender.

(11) Disengage clips attaching wire harness to inner fender and wheelhouse.

(12) Remove bolt attaching fender to lower rocker panel.

(13) Remove bolts attaching fender to lower radiator closure panel (Fig. 15).

(14) Remove bolts attaching fender to hood hinge support bracket.

(15) Remove bolts attaching fender to upper cowl (Fig. 14).

(16) Remove bolts attaching fender to upper radiator closure panel.

(17) Separate fender and wheelhouse from vehicle.

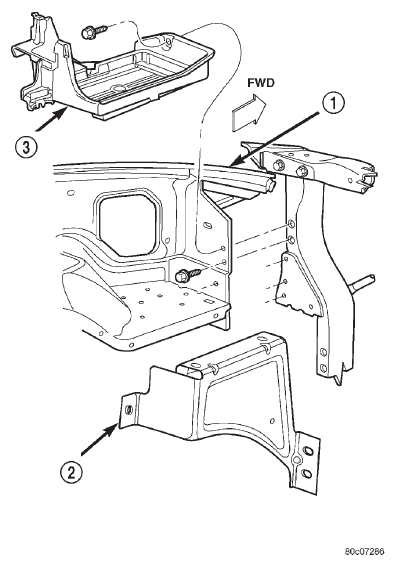

Fig. 13 Battery Tray and Support Bracket

1 - FRONT FENDER

2 - BATTERY TRAY SUPPORT BRACKET

3 - BATTERY TRAY

INSTALLATION

(1) Position fender and wheelhouse from vehicle.

(2) Install bolts attaching fender to upper radiator closure panel.

(3) Install bolts attaching fender to upper cowl.

(4) Install bolts attaching fender to hood hinge support bracket.

(5) Install bolts attaching fender to lower radiator closure panel.

(6) Install bolt attaching fender to lower rocker panel.

(7) Position the hood release cable to inner fender and engage clips.

(8) Position the wire harnesses on the inner fender and wheelhouse and engage clips.

(9) Install HCU if equipped. Refer to Group 5, Brakes for service procedures.

(10) Install battery support bracket and battery tray.

(11) Install PDC (power distribution center).

(12) Install left headlamp module.

(13) Install battery.

(14) Install wheelhouse liner.

(15) Install wheel opening molding.

(16) Install left front wheel.

(17) Remove the support and lower the vehicle.

Right front fender

REMOVAL

(1) Disconnect battery negative cable.

(2) Raise and support the vehicle.

(3) Remove right front wheel.

(4) Remove wheel opening molding.

(5) Remove wheelhouse liner.

(6) Remove right headlamp module.

(7) Remove air cleaner element housing.

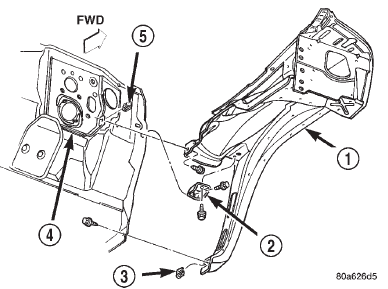

Fig. 14 Front Fender

1 - FRONT FENDER

2 - BRACKET

3 - U-NUT

4 - DASH PANEL

5 - U-NUT

(8) Remove powertrain control module.

(9) Disengage clips attaching wire harnesses to inner fender and wheelhouse.

(10) Remove bolt attaching fender to lower rocker panel.

(11) Remove bolts attaching fender to lower radiator closure panel (Fig. 15).

(12) Remove bolts attaching fender to hood hinge support bracket.

(13) Remove bolts attaching fender to upper cowl.

(14) Remove bolts attaching fender to upper radiator closure panel.

(15) Separate fender and wheelhouse from vehicle.

INSTALLATION

(1) Position fender and wheelhouse from vehicle.

(2) Install bolts attaching fender to upper radiator closure panel.

(3) Install bolts attaching fender to upper cowl.

(4) Install bolts attaching fender to hood hinge support bracket.

(5) Install bolts attaching fender to lower radiator closure panel.

(6) Install bolt attaching fender to lower rocker panel.

(7) Position the wire harnesses on the inner fender and wheelhouse and engage clips.

(8) Install powertrain control module.

(9) Install air cleaner element housing.

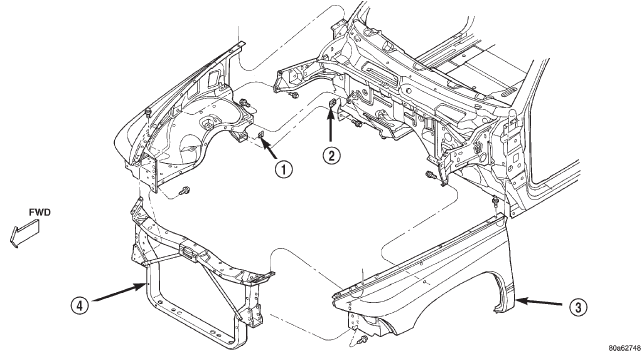

Fig. 15 Front Fender

1 - U-NUT

2 - U-NUT

3 - FRONT FENDER

4 - RADIATOR CLOSURE PANEL

(10) Install right headlamp module.

(11) Install wheelhouse liner.

(12) Install wheel opening molding.

(13) Install right front wheel.

(14) Remove the support and lower the vehicle.

(15) Connect battery negative cable.
