Running board. Exterior nameplates

Running board

REMOVAL

The running boards can be removed and installed on the vehicle as an assembly.

(1) Remove the fasteners from the wheel opening molding (Fig. 17).

(2) Remove the fasteners retaining the running board brackets to the body (Fig. 16).

(3) Separate the running boards from the vehicle.

INSTALLATION

(1) Position the running boards on the vehicle.

(2) Install the bolts retaining the running board brackets to the body.

(3) Install the fasteners in the wheel opening molding.

Exterior nameplates

REMOVAL

NOTE: Exterior nameplates are attached to body panels with adhesive tape.

(1) Apply a length of masking tape on the body, parallel to the top edge of the nameplate to use as a guide, if necessary.

(2) If temperature is below 21C (70F) warm emblem with a heat lamp or gun. Do not exceed 52C (120F) when heating emblem.

(3) Insert a plastic trim stick or a hard wood wedge behind the emblem to separate the adhesive backing from the body.

(4) Clean adhesive residue from body with MOPAR Super Clean solvent or equivalent.

INSTALLATION

(1) Remove carrier from adhesive tape on back of emblem.

(2) Position emblem properly on body (Fig. 18).

(3) Press emblem firmly to body with palm of hand.

(4) If temperature is below 21C (70F) warm emblem with a heat lamp or gun to assure adhesion.

Do not exceed 52C (120F) when heating emblem.

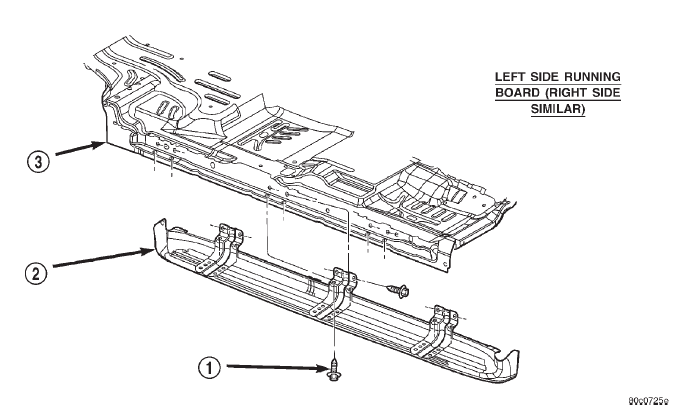

Fig. 16 Running Board Left Side

1 - SCREW

2 - RUNNING BOARD

3 - LEFT UNDERBODY RAIL

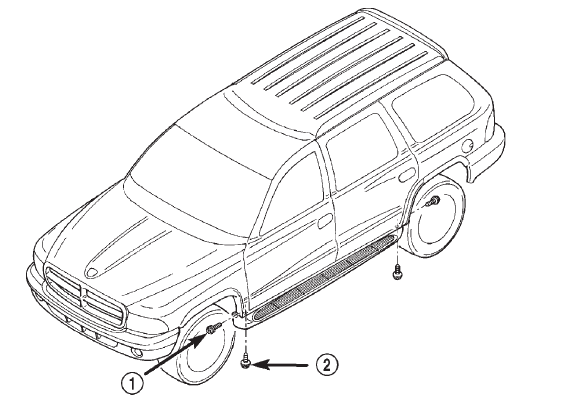

Fig. 17 Running Boards

1 - SCREW

2 - BOLT

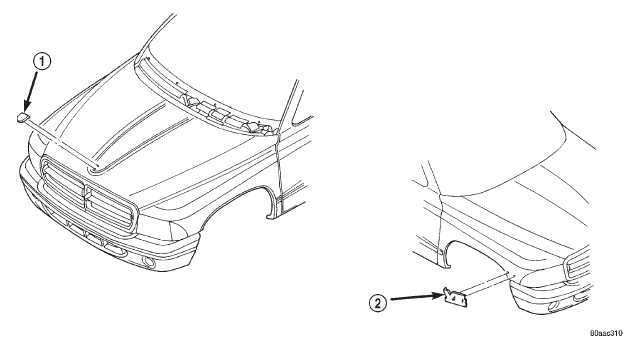

Fig. 18 Hood/Fender Nameplates

1 - HOOD NAMEPLATE

2 - ENGINE NAMEPLATE
