Front door inner belt weatherstrip. Front door outer belt weatherstrip
REMOVAL (1) Remove screws attaching trim panel to door.
(2) Lift trim panel up and over inner belt seal.
(3) Peel seal from door (Fig. 36).

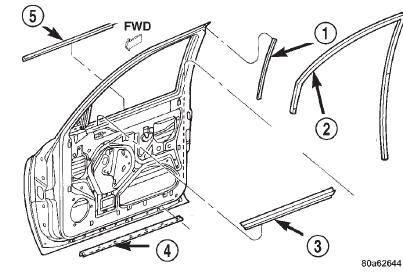

1 - B-PILLAR SECONDARY SEAL 2 - GLASS RUN WEATHERSTRIP 3 - INNER BELT WEATHERSTRIP 4 - SECONDARY SEAL 5 - OUTER BELT WEATHERSTRIP INSTALLATION (1) Slide seal into position on door.
(2) Position trim panel over inner belt seal and
install screws. REMOVAL (1) Lower glass.
(2) Lift rearward corner of weatherstrip and slide
weatherstrip rearward (Fig. 36). INSTALLATION (1) Lightly lubricate weatherstrip with silicone and
slide weatherstrip behind mirror.
(2) Push weatherstrip down to seat onto door.Front door inner belt weatherstrip
Fig. 36 Front Door Weatherstrip/SealsFront door outer belt weatherstrip
