Front door latch striker. Front door inside handle actuator

Front door latch striker

REMOVAL

(1) Use a wax crayon or equivalent and mark position of striker on B-pillar.

(2) Remove bolts attaching striker and shim to B-pillar (Fig. 35).

(3) Separate striker from B-pillar.

INSTALLATION

(1) Using alignment marks, position shim and striker on B-Pillar.

(2) Install bolts. Tighten bolts to 28 N*m (20 ft.

lbs.) torque.

Front door inside handle actuator

The front door inside handle actuator is heat staked to the trim panel. If the handle needs servicing, refer to the heat staking procedure located in this section.

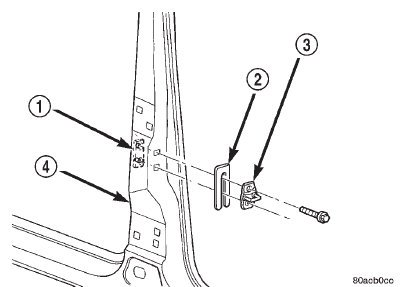

Fig. 35 Front Door Latch Striker

1 - TAPPING PLATE

2 - SHIM

3 - STRIKER

4 - B-PILLAR
