Lock cylinders. Front door latch

Lock cylinders

Ignition, door, deck lid, and rear hatch lock cylinders are all codable to the key. Lock barrels, tumblers, and tumbler springs are available to allow the technician to change replacement locks cylinders to match the customer's original key set. See the appropriate section in this manual for lock cylinder removal. See the Mopart catalogue for part numbers and lock coding procedures.

Front door latch

REMOVAL

(1) Remove door trim panel.

(2) Peel back water dam as necessary.

(3) For access to latch, roll up glass and remove bolts attaching rearward glass run channel to door.

Move and secure glass run channel.

(4) Remove screws attaching latch to door shut face (Fig. 34).

(5) Disengage wire harness connector for power door locks, if equipped.

(6) Disengage lock button to latch rod from the latch.

(7) Disengage lock cylinder to latch rod from the latch (Fig. 32).

(8) Disengage inside handle to latch rod from the latch.

(9) Disengage outside handle to latch rod from the latch.

(10) Separate latch from door.

INSTALLATION

(1) Engage latch rod to outside handle.

(2) Engage inside handle to latch rod to the latch.

(3) Engage lock cylinder to latch rod to the latch.

(4) Engage lock button to latch rod to the latch.

(5) Position latch in door.

(6) Install screws attaching latch to door shut face.

Tighten the screws to 9.6 N*m (85 in. lbs.) torque.

(7) Engage outside handle to latch rod to the latch.

(8) Engage wire harness connector for power door locks, if equipped.

(9) Install rearward glass run channel.

(10) Install water dam.

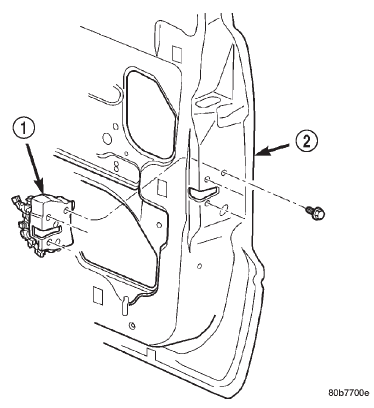

Fig. 34 Latch

1 - LATCH

2 - DOOR

(11) Install door trim panel.

(12) Using the access hole in the door shut face, loosen the latch adjustment screw and ensure the outside door handle is flush with door outer panel.

Tighten the adjustment screw.
