Headlamp alignment
Headlamp alignment
Headlamps can be aligned using the screen method provided in this section. Alignment Tool C-4466-A or equivalent can also be used. Refer to instructions provided with the tool for proper procedures.
Lamp alignment screen preparation
(1) Position vehicle on a level surface perpendicular to a flat wall 7.62 meters (25 ft) away from front of headlamp lens (Fig. 1).
(2) If necessary, tape a line on the floor 7.62 meters (25 ft) away from and parallel to the wall.
(3) Up 1.27 meters (5 feet) from the floor, tape a line on the wall at the centerline of the vehicle. Sight along the centerline of the vehicle (from rear of vehicle forward) to verify accuracy of the line placement.
(4) Rock vehicle side-to-side three times to allow suspension to stabilize.
(5) Jounce front suspension three times by pushing downward on front bumper and releasing.
(6) Measure the distance from the center of headlamp lens to the floor. Transfer measurement to the alignment screen (with tape). Use this line for up/down adjustment reference.
(7) Measure distance from the centerline of the vehicle to the center of each headlamp being aligned.
Transfer measurements to screen (with tape) to each side of vehicle centerline. Use these lines for left/ right adjustment reference.
Vehicle preparation for headlamp alignment
(1) Verify headlamp dimmer switch and high beam indicator operation.
(2) Correct defective components that could hinder proper headlamp alignment.
(3) Verify proper tire inflation.
(4) Clean headlamp lenses.
(5) Verify that luggage area is not heavily loaded.
(6) Fuel tank should be FULL. Add 2.94 kg (6.5 lbs.) of weight over the fuel tank for each estimated gallon of missing fuel.

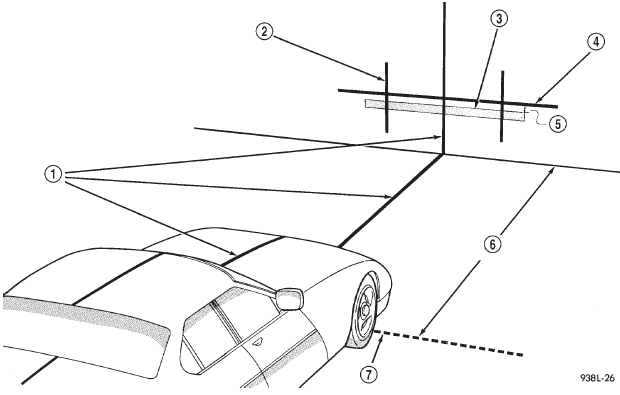

Fig. 1 Headlamp Alignment Screen-Typical
1 - CENTER OF VEHICLE
2 - CENTER OF HEADLAMP
3 - 7.62 METERS (25 FT.)
4 - FRONT OF HEADLAMP
Headlamp alignment
A properly aimed low beam headlamp will project top edge of high intensity pattern on screen from 50 mm (2 in.) above to 50 mm (2 in.) below headlamp centerline. The side-to-side outboard edge of high intensity pattern should be from 50 mm (2 in.) left to 50 mm (2 in.) right of headlamp centerline (Fig. 1).
The preferred headlamp alignment is 1" down for the up/down adjustment and 0 for the left/ right adjustment. The high beam pattern should be correct when the low beams are aligned properly.
To adjust low beam headlamp, rotate alignment screws (Fig. 2) to achieve the specified aim.

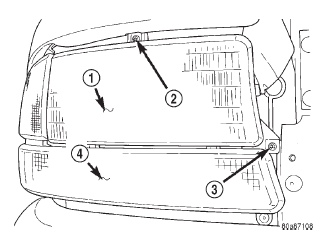

Fig. 2 Headlamp Adjustment Screws
1 - HEADLAMP
2 - UP/DOWN ADJUSTMENT
3 - LEFT/RIGHT ADJUSTMENT
4 - PARK LAMP

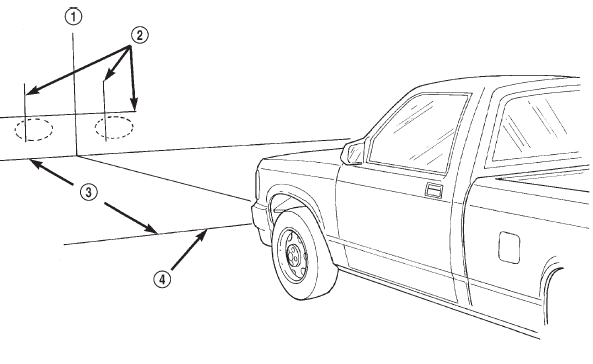

Fig. 3 Fog Lamp Alignment -Typical
1 - VEHICLE CENTERLINE
2 - CENTER OF VEHICLE TO CENTER OF FOG LAMP LENS
3 - HIGH-INTENSITY AREA
4 - FLOOR TO CENTER OF FOG LAMP LENS
5 - 100 mm (4 in.)
6 - 7.62 METERS (25 FEET)
7 - FRONT OF FOG LAMP
Fog lamp alignment
Prepare an alignment screen. Refer to Alignment Screen Preparation paragraph in this section. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp centerline and straight ahead (Fig. 3). Rotate the adjustment screw to adjust beam height (Fig. 4).

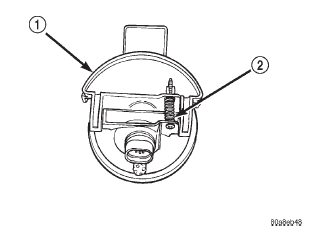

Fig. 4 Fog Lamp Adjustment
1 - FOG LAMP
2 - ADJUSTMENT SCREW
Special tools
Headlamp alignment
Headlamp Aiming Kit C-4466-A
