Lamp bulb service

Headlamp bulb

REMOVAL

(1) Open hood.

(2) Remove headlamp assembly. See headlamp removal in the lamp service section.

(3) Remove the retaining ring holding bulb to headlamp.

(4) Pull bulb socket from headlamp (Fig. 1).

(5) Grasp bulb and pull from socket.

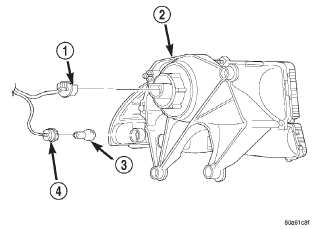

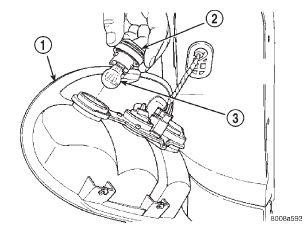

Fig. 1 Headlamp Bulb

1 - HEADLAMP BULB SOCKET

2 - HEADLAMP

3 - BULB

4 - SIDE MARKER LAMP BULB SOCKET

INSTALLATION

CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.

(1) Position bulb into socket and push into place.

(2) Position bulb socket in headlamp.

(3) Install retaining ring holding bulb to headlamp.

(4) Install headlamp assembly.

Fog lamp bulb

REMOVAL

(1) Disengage fog lamp harness connector.

(2) Rotate bulb socket a 1/4 turn counterclockwise and pull from lamp to separate (Fig. 2).

(3) Grasp bulb and pull from lamp.

Fig. 2 Fog Lamp Bulb

1 - FOG LAMP

2 - FOG LAMP BULB

INSTALLATION

CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.

(1) Position bulb in lamp, push to seat and rotate a 1/4 turn clockwise.

(2) Connect fog lamp harness connector.

Park and turn signal lamp bulbs

REMOVAL

(1) Remove park and turn signal lamp.

(2) Rotate bulb socket 1/4 turn counterclockwise and pull turn signal lamp socket from back of lamp (Fig. 3).

(3) Pull park and turn signal lamp bulb from socket.

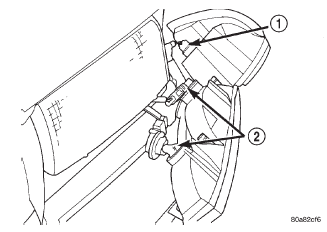

Fig. 3 Park And Turn Signal Lamp bulb

1 - SIDE MARKER LAMP BULB

2 - PARK/TURN SIGNAL LAMP BULB

INSTALLATION

(1) Install park and turn signal lamp bulb in socket.

(2) Install park and turn signal lamp socket into back of lamp.

(3) Install park/turn signal lamp.

Front side marker lamp bulb

REMOVAL

(1) Remove park and turn signal lamp.

(2) Remove side marker lamp socket from back of lamp (Fig. 1).

(3) Pull side marker lamp bulb from socket.

INSTALLATION

(1) Install side marker lamp bulb in socket.

(2) Install side marker lamp socket into back of lamp.

(3) Install park/turn signal lamp.

Center high mounted stop lamp (chmsl) bulb

REMOVAL

(1) Remove CHMSL from liftgate.

(2) Turn bulb socket 1/4 turn counterclockwise.

(3) Separate socket from lamp.

(4) Grasp bulb and pull from socket.

INSTALLATION

(1) Position bulb in socket and press into place.

(2) Position socket in lamp.

(3) Turn bulb socket 1/4 turn clockwise.

(4) Install CHMSL.

Liftgate/cargo lamp bulb

REMOVAL

(1) Remove liftgate/cargo lamp from liftgate.

(2) Using a small flatblade, pry lamp lens from lamp.

(3) Remove bulb from lamp.

INSTALLATION

(1) Install in bulb in lamp.

(2) Install lamp lens on lamp.

(3) Install liftgate/cargo lamp in liftgate.

Tail, brake, turn signal and back-up lamp bulb

REMOVAL

(1) Release liftgate latch and open liftgate.

(2) Remove screws attaching tail, brake, turn signal and back-up lamp to liftgate opening.

(3) Separate inner end of lamp from quarter panel.

(4) Disengage hook holding outer end of lamp to quarter panel opening.

(5) Separate lamp from quarter panel.

(6) Rotate lamp socket counterclockwise one quarter turn (Fig. 4).

(7) Pull socket from back of lamp.

(8) Pull bulb from socket (Fig. 5).

INSTALLATION

(1) Align key on bulb base to groove in socket and insert bulb into socket (Fig. 5).

(2) Insert socket into back of lamp.

(3) Rotate lamp socket clockwise one quarter turn.

(4) Engage hook to hold outer end of lamp to quarter panel opening.

(5) Place lamp in position on quarter panel.

(6) Install screws attaching lamp to liftgate opening.

Fig. 4 Tail, Brake, Turn Signal and Back-up Lamp Bulb

1 - TAIL, STOP AND TURN SIGNAL LAMP

2 - SOCKET

3 - BULB

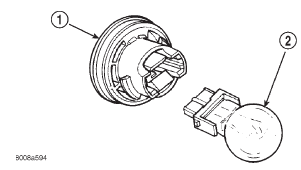

Fig. 5 Pull Bulb From Socket

1 - SOCKET

2 - BULB

License plate lamp bulb

REMOVAL

(1) Remove license plate lamp from rear bumper.

(2) Remove bulb socket from lamp (Fig. 6).

(3) Pull bulb from socket.

INSTALLATION

(1) Push bulb in socket.

(2) Install bulb socket in lamp.

(3) Install license plate lamp in rear bumper.

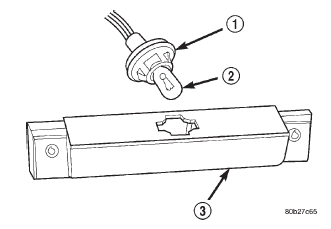

Fig. 6 License Plate Lamp Bulb

1 - SOCKET

2 - BULB

3 - LICENSE PLATE LAMP

Underhood lamp bulb

REMOVAL

(1) Insert a small flat blade in the access slot between the lamp base and lamp lens.

(2) Pry the lamp lens upward and remove the lamp lens (Fig. 7).

(3) Depress the bulb terminal inward (Fig. 8) to release the bulb.

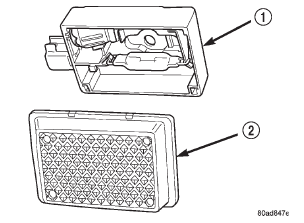

Fig. 7 Underhood Lamp Lens

1 - LAMP

2 - LAMP LENS

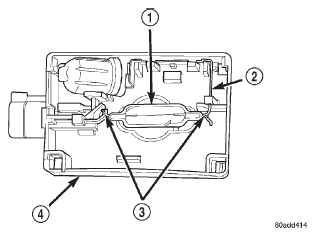

Fig. 8 Underhood Lamp Bulb

1 - BULB

2 - DEPRESS TERMINAL INWARD

3 - BULB WIRE LOOP

4 - LAMP BASE

INSTALLATION

(1) Engage the replacement bulb wire loop to the terminal closest to the lamp base wire connector.

(2) Depress the opposite terminal inward and engage the remaining bulb wire loop.

(3) Position the lamp lens on the lamp base and press into place.

Dome lamp bulb

REMOVAL

(1) Using a small flat blade, pry the left side (driver's side) of the lamp lens downward.

(2) Pull bulb from lamp.

INSTALLATION

(1) Install bulb in lamp.

(2) Position lens on lamp and snap into place.

2Nd seat dome/reading lamp bulb

REMOVAL

(1) Using a small flat blade, pry the center rearward edge of the dome/reading lamp lens downward from lamp (Fig. 9).

(2) Pull bulb from socket (Fig. 10).

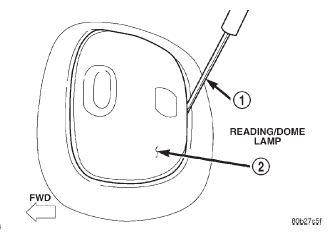

Fig. 9 Lamp Lens

1 - FLAT BLADE

2 - LENS

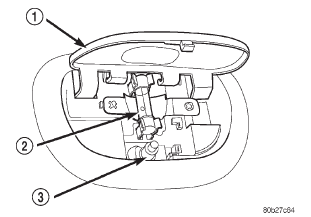

Fig. 10 Dome/Reading Lamp Bulb

1 - LAMP LENS

2 - BULB

3 - SWITCH

INSTALLATION

(1) Position bulb in lamp.

(2) Push the lamp lens up into the lamp to secure.

Overhead console reading lamp bulb

REMOVAL

(1) Using a small flat blade, carefully pry forward edge of reading lamp lens downward from lamp.

(2) Disengage lamp lens from pivots on overhead console.

(3) Rotate bulb holder and pull bulb from lamp.

INSTALLATION

(1) Position bulb in lamp and rotate to secure.

(2) Position lamp lens on overhead console. Ensure contact tab (Fig. 11) on lamp lens is aligned with lamp switch.

(3) Carefully press lamp lens onto pivots.

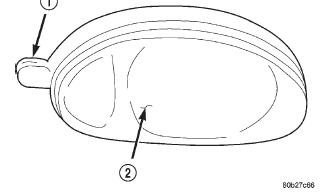

Fig. 11 Reading Lamp Lens

1 - SWITCH CONTACT TAB

2 - READING LAMP LENS
