Rear door latch striker. Rear door inner belt weatherstrip

Rear door latch striker

REMOVAL

(1) Use a wax crayon or equivalent and mark position of striker on C-pillar.

(2) Remove bolts attaching striker and shim to C-pillar (Fig. 52).

(3) Separate striker from C-pillar.

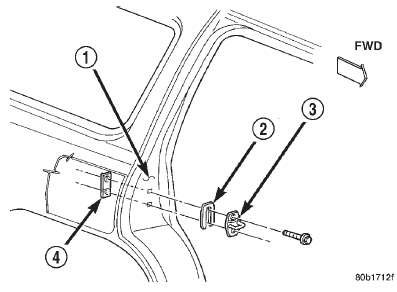

Fig. 52 Rear Door Latch Striker

1 - C-PILLAR

2 - SHIM

3 - STRIKER

4 - TAPPING PLATE

INSTALLATION

(1) Using alignment marks, position shim and striker on C-Pillar.

(2) Install bolts. Tighten bolts to 28 N*m (20 ft.

lbs.) torque.

Rear door inside handle actuator

The rear door inside handle actuator is heat staked to the trim panel. If the handle needs servicing, refer to the heat staking procedure located in this section.

Rear door inner belt weatherstrip

REMOVAL

(1) Remove trim panel.

(2) Pull weatherstrip from inner door panel (Fig.

53).

INSTALLATION

(1) Position weatherstrip on inner door panel (Fig.

53).

(2) Press into place.

(3) Install trim panel.
