Rear door outer belt weatherstrip. Rear door opening weatherstrip
REMOVAL (1) Lower glass.
(2) Lift corner of weatherstrip upward and remove
weatherstrip from outer door panel (Fig. 53).
1 - OUTER BELT WEATHERSTRIP 2 - INNER BELT WEATHERSTRIP INSTALLATION (1) Position weatherstrip on outer door panel (Fig.
53).
(2) Press into place.
(3) Raise glass. REMOVAL (1) Remove door sill trim.
(2) Loosen upper and lower B-pillar trim to access
weatherstrip.
(3) Remove C-pillar trim.
(4) Pull quarter panel trim outward to access
weatherstrip.
(5) Pull weatherstrip from pinch flange around
door opening (Fig. 54). INSTALLATION (1) Clean pinch flange
(2) Position the weatherstrip on the pinch flange
around door opening and press into place.
(3) Install quarter panel trim.
(4) Install C-pillar trim.
(5) Install B-pillar trim.
(6) Install door sill trim. Ensure the clips attaching
the sill trim to the door sill are fully seated.
(7) Install A-pillar trim.Rear door outer belt weatherstrip

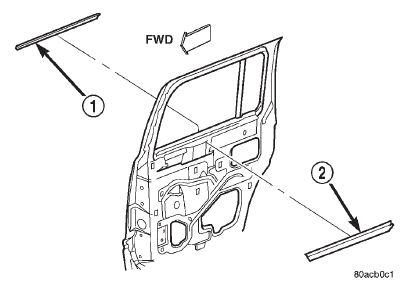

Fig. 53 Inner/Outer Belt WeatherstripRear door opening weatherstrip
